Pressure Balanced Lubricated Plug Valve, API 599, 1/2-24 Inch
Key Specifications / Features
Model No.: JSC-231215-PBPV-01 Hits: 7
Introducing our Pressure Balanced Lubricated Plug Valve, expertly crafted by a leading manufacturer in China. Available in sizes ranging from 1/2 to 24 inches, with class ratings of 150-900 LB, this valve meets API 599 and DIN 3202 standards. Manufactured from high-quality alloy and stainless steel, it features a full bore design, ensuring efficient and reliable performance. Trust in our commitment to excellence for your pressure-balanced lubricated plug valve requirements.
Request a quote
Tags:
Detail Information
Lubricated Pressure Balanced Plug Valve Feature
1. It has logical structure, reliable seal, excellent performance and nice design.
2. It has the structure of flip-chip balanceable pressure and light on/off operation.
3. An sealant groove is set between valve body and seal surface, which may infuse the seal grease to increase the seal capability.
4. The part material and flange dimension may be selected according to current operating condition and users’ requirement, so that meet the requirements of various engineering.

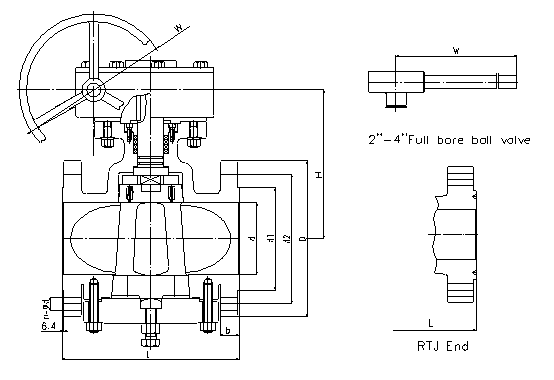

Lubricated Pressure Balanced Plug Valve Feature Structure
Lubricated Pressure Balanced Plug Valve Class 150 LB Dimension
Lubricated Pressure Balanced Plug Valve Class 300 LB Dimension
Lubricated Pressure Balanced Plug Valve Class 600 LB Dimension
API 6D Flange Pressure Lubricated Plug Valve-Specifications and Materials
Design and manufacture: API 599, ASME B16.34, DIN 3202
Face to face dimensions: ASME B16.10
Flange ends: ASME B16.5
Butt-weld ends: ASME B16.25
Threaded Ends: ASME B1.20.1
Socket-weld Ends: ASME B16.11
Valves Marking: MSS SP-25
Inspection and testing: API 598
Body material: ASTM A216 WCB, ASTM A352 LCB, Alloy Steel ASTM A217 WC6, WC9, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M, Duplex ASTM A890 4A, 5A, Special Alloy, Monel, Bronze C95800, Alloy 20
Trim material: ASTM A216 WCB, ASTM A352 LCB, ASTM A105, Alloy Steel ASTM A217 WC6, WC9, ASTM A182 F11, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M, ASTM A182 F304, F316, F304L, F316L, Duplex ASTM A890 4A, 5A, ASTM A182 F51, F55, Special Alloy, Monel, Bronze C95800, Alloy 20
Size range: 1/2 Inch - 24 Inch, DN15 - DN600
Pressure range: Class 150 - 900 LB
Drive Mode: Manual, Worm gear, Electric, Pneumatic
Field of Application: Electric/Hydraulic/Municipal Engineering etc; Water/Sea water/Gas etc.
1. It has logical structure, reliable seal, excellent performance and nice design.
2. It has the structure of flip-chip balanceable pressure and light on/off operation.
3. An sealant groove is set between valve body and seal surface, which may infuse the seal grease to increase the seal capability.
4. The part material and flange dimension may be selected according to current operating condition and users’ requirement, so that meet the requirements of various engineering.
Lubricated Pressure Balanced Plug Valve Feature Structure
Lubricated Pressure Balanced Plug Valve Class 150 LB Dimension
NPS | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
d | mm | 51 | 64 | 76 | 102 | 152 | 203 | 254 | 305 | 337 | 387 | 438 | 489 | 591 |
L(RF) | mm | 178 | 190 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 | 1016 |
d1 | mm | 92 | 105 | 127 | 157 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
d2 | mm | 120.5 | 139.5 | 152.5 | 190.5 | 241.5 | 298.5 | 362 | 432 | 476 | 540 | 578 | 635 | 749.5 |
D | mm | 152 | 178 | 190 | 229 | 279 | 343 | 406 | 483 | 533 | 597 | 635 | 699 | 813 |
b | mm | 16 | 18 | 19 | 24 | 26 | 29 | 31 | 32 | 35 | 37 | 40 | 43 | 48 |
n-Фd | mm | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 12-25 | 12-25 | 12-29 | 16-29 | 16-32 | 20-32 | 20-35 |
H | mm | 175 | 180 | 190 | 214 | 270 | 370 | 420 | 490 | 500 | 645 | 690 | 740 | 800 |
W | mm | 350 | 600 | 700 | 700 | 900 | 600 | 600 | 600 | 600 | 700 | 760 | 760 | 760 |
Lubricated Pressure Balanced Plug Valve Class 300 LB Dimension
NPS | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
d | mm | 51 | 64 | 76 | 102 | 152 | 203 | 254 | 305 | 337 | 387 | 432 | 483 | 584 |
L(RF) | mm | 216 | 241 | 283 | 305 | 403 | 502 | 568 | 648 | 762 | 838 | 914 | 991 | 1143 |
d1 | mm | 92 | 105 | 127 | 157 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
d2 | mm | 127 | 149 | 168.5 | 200 | 270 | 330 | 387.5 | 451 | 514.5 | 571.5 | 628.5 | 686 | 813 |
D | mm | 165 | 190 | 210 | 254 | 318 | 381 | 445 | 521 | 584 | 648 | 711 | 775 | 914 |
b | mm | 23 | 26 | 29 | 32 | 37 | 42 | 48 | 51 | 54 | 58 | 61 | 64 | 70 |
n-Фd | mm | 8-19 | 8-22 | 8-22 | 8-22 | 12-22 | 12-25 | 16-29 | 16-32 | 20-32 | 20-35 | 24-35 | 24-35 | 24-41 |
H | mm | 184 | 190 | 195 | 265 | 307 | 390 | 433 | 500 | 630 | 740 | 790 | 830 | 890 |
W | mm | 500 | 550 | 600 | 700 | 900 | 600 | 600 | 700 | 700 | 760 | 760 | 760 | 760 |
Lubricated Pressure Balanced Plug Valve Class 600 LB Dimension
NPS | in | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
d | mm | 51 | 76 | 102 | 127 | 152 | 200 | 248 | 298 | 327 | 375 | 419 | 464 | 559 |
L(RF) | mm | 292 | 356 | 432 | 508 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 |
L(RTJ) | mm | 295 | 359 | 435 | 511 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | 1200 | 1407 |
d1 | mm | 92 | 127 | 157 | 186 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
d2 | mm | 127 | 168.5 | 216 | 267 | 292 | 349 | 432 | 489 | 527 | 603 | 654 | 724 | 838 |
D | mm | 165 | 210 | 273 | 330 | 356 | 419 | 508 | 559 | 603 | 686 | 743 | 813 | 940 |
b | mm | 26 | 32 | 38 | 45 | 48 | 56 | 64 | 67 | 70 | 77 | 83 | 89 | 102 |
n-Фd | mm | 8-19 | 8-22 | 8-25 | 8-29 | 12-29 | 12-32 | 16-35 | 20-35 | 20-38 | 20-41 | 20-44 | 24-44 | 24-52 |
H | mm | 194 | 205 | 270 | 300 | 350 | 405 | 460 | 500 | 630 | 740 | 790 | 830 | 890 |
W | mm | 500 | 780 | 1100 | 600 | 600 | 600 | 600 | 700 | 700 | 760 | 760 | 760 | 760 |
API 6D Flange Pressure Lubricated Plug Valve-Specifications and Materials
Design and manufacture: API 599, ASME B16.34, DIN 3202
Face to face dimensions: ASME B16.10
Flange ends: ASME B16.5
Butt-weld ends: ASME B16.25
Threaded Ends: ASME B1.20.1
Socket-weld Ends: ASME B16.11
Valves Marking: MSS SP-25
Inspection and testing: API 598
Body material: ASTM A216 WCB, ASTM A352 LCB, Alloy Steel ASTM A217 WC6, WC9, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M, Duplex ASTM A890 4A, 5A, Special Alloy, Monel, Bronze C95800, Alloy 20
Trim material: ASTM A216 WCB, ASTM A352 LCB, ASTM A105, Alloy Steel ASTM A217 WC6, WC9, ASTM A182 F11, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M, ASTM A182 F304, F316, F304L, F316L, Duplex ASTM A890 4A, 5A, ASTM A182 F51, F55, Special Alloy, Monel, Bronze C95800, Alloy 20
Size range: 1/2 Inch - 24 Inch, DN15 - DN600
Pressure range: Class 150 - 900 LB
Drive Mode: Manual, Worm gear, Electric, Pneumatic
Field of Application: Electric/Hydraulic/Municipal Engineering etc; Water/Sea water/Gas etc.
