Orbit Plug Valve, API 599, DIN 3202, 1/2-24 Inch, 150-900 LB
Key Specifications / Features
Model No.: JSC-231124-PBPV-115 Hits: 10
Discover precision and reliability with our Orbit Plug Valves, engineered to meet API 599, DIN 3202, and ASME 16.34 standards. Available in sizes from 1/2 to 24 inches, these valves offer versatility for various applications. Crafted from high-quality materials such as ASTM A352 LCB, ASTM A216 WCB, ASTM A217 WC6, and ASTM A351 CF8, including Duplex A890, our plug valves ensure durability and optimal performance.
Request a quote
Tags:
Detail Information

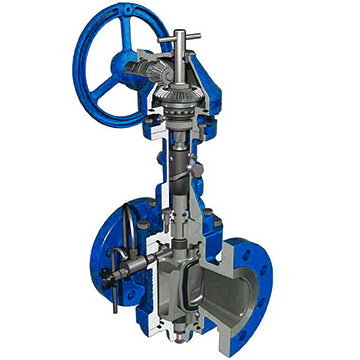

Orbit Plug Valve
Orbit plug valve, also known as double block and double bleed valve non-lubricated, double seal plug valve is suitable for aviation kerosene, crude oil, light oil, natural gas, liquefied gas, pipeline gas, chemical medium and other pipelines, as an ideal device for cutting off medium. The key to the working principle of the valve is the action of two sealing sliding blades installed on the cock.
Orbit Plug Valve-Features
During the opening process of the track plug valve, the valve plug and the valve seat are in a state of separation, and the sealing surface is free of friction and wear
The plug can rotate flexibly, and can ensure the sealing of inlet and outlet ends and middle flange. At the same time,Viton is used for sealing. The sealing performance is realized by the sealing ring around the valve plug.
During the maintenance of the valve, it is not necessary to remove the valve from the pipeline, but to remove the valve bottom cover and replace a pair of sliding plates, which is very convenient for maintenance.
The valve body and plug are full bore, the medium has no flow resistance when passing through the valve, and the pipeline can be cleaned by passing through the ball, which overcomes the shortcomings of reducing bore valve.
The valve has an automatic relief device (optional) to prevent abnormal pressure rise in the valve chamber after the valve is fully closed and to check the effect of the valve.
Orbit plug valve-Specifications and materials
Design and manufactured: API 599, ASME B16.34, DIN 3202
Face to face dimensions: ASME B16.10
Flange ends: ASME B16.5
Butt-weld ends: ASME B16.25
Threaded Ends: ASME B1.20.1
Socket-weld Ends: ASME B16.11
Valves Marking: MSS SP-25
Inspection and testing: API 598
Body material: ASTM A216 WCB, ASTM A352 LCB, Alloy Steel ASTM A217 WC6, WC9, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M, Duplex ASTM A890 4A, 5A, Special Alloy, Monel, Bronze C95800, Alloy 20
Trim material: ASTM A216 WCB, ASTM A352 LCB, ASTM A105, Alloy Steel ASTM A217 WC6, WC9, ASTM A182 F11, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M, ASTM A182 F304, F316, F304L, F316L, Duplex ASTM A890 4A, 5A, ASTM A182 F51, F55, Special Alloy, Monel, Bronze C95800, Alloy 20
Size range 1/2 Inch – 24 Inch, DN15-DN600
Pressure range: Class 150 LB-900 LB
Drive Mode: Manual, Worm gear, Electric, Pneumatic
Field of Application: Electric/Hydraulic/Municipal Engineering etc; Water/Sea water/Gas etc.
Orbit plug valve, also known as double block and double bleed valve non-lubricated, double seal plug valve is suitable for aviation kerosene, crude oil, light oil, natural gas, liquefied gas, pipeline gas, chemical medium and other pipelines, as an ideal device for cutting off medium. The key to the working principle of the valve is the action of two sealing sliding blades installed on the cock.
Orbit Plug Valve-Features
During the opening process of the track plug valve, the valve plug and the valve seat are in a state of separation, and the sealing surface is free of friction and wear
The plug can rotate flexibly, and can ensure the sealing of inlet and outlet ends and middle flange. At the same time,Viton is used for sealing. The sealing performance is realized by the sealing ring around the valve plug.
During the maintenance of the valve, it is not necessary to remove the valve from the pipeline, but to remove the valve bottom cover and replace a pair of sliding plates, which is very convenient for maintenance.
The valve body and plug are full bore, the medium has no flow resistance when passing through the valve, and the pipeline can be cleaned by passing through the ball, which overcomes the shortcomings of reducing bore valve.
The valve has an automatic relief device (optional) to prevent abnormal pressure rise in the valve chamber after the valve is fully closed and to check the effect of the valve.
Orbit plug valve-Specifications and materials
Design and manufactured: API 599, ASME B16.34, DIN 3202
Face to face dimensions: ASME B16.10
Flange ends: ASME B16.5
Butt-weld ends: ASME B16.25
Threaded Ends: ASME B1.20.1
Socket-weld Ends: ASME B16.11
Valves Marking: MSS SP-25
Inspection and testing: API 598
Body material: ASTM A216 WCB, ASTM A352 LCB, Alloy Steel ASTM A217 WC6, WC9, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M, Duplex ASTM A890 4A, 5A, Special Alloy, Monel, Bronze C95800, Alloy 20
Trim material: ASTM A216 WCB, ASTM A352 LCB, ASTM A105, Alloy Steel ASTM A217 WC6, WC9, ASTM A182 F11, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M, ASTM A182 F304, F316, F304L, F316L, Duplex ASTM A890 4A, 5A, ASTM A182 F51, F55, Special Alloy, Monel, Bronze C95800, Alloy 20
Size range 1/2 Inch – 24 Inch, DN15-DN600
Pressure range: Class 150 LB-900 LB
Drive Mode: Manual, Worm gear, Electric, Pneumatic
Field of Application: Electric/Hydraulic/Municipal Engineering etc; Water/Sea water/Gas etc.
