GOST Triple Offset Butterfly Valve, A216 WCB, DN1200, PN16

Key Specifications / Features

Model No.: JSC-240428-EBV-01

Hits: 5
Explore our triple offset butterfly valves meticulously crafted from ASTM A216 WCB steel, designed to meet GOST standards. With a robust size of DN1200 and a pressure rating of PN16, these valves offer reliability and durability for various industrial applications. Featuring a metal laminate seat and a triple offset design, they ensure tight sealing and minimal friction during operation, enhancing efficiency and longevity.
Request a quote

Detail Information


Triple Eccentric Butterfly Valve

Valve description: Butterfly valve, triple eccentric, metal laminate seat, uni-directional, cast carbon steel, high temperature, one piece stem, pin

Body material: ASTM A216 WCB
Disc material: ASTM A216 WCB
Nominal diameter: DN1200 (48 Inch)
Nominal class: PN16 (Class 150 LB)
End connection: Flange
Metal seat: SS 304 + graphite
Face to face: ISO 5752
Flange end: GOST 12815
Mode of operation: Gear
Test and inspection: EN 12266

The Three Eccentric Laminate Hard Seal Flange Butterfly Valve is a durable and energy-efficient solution. Its design incorporates the principles of three-dimensional core design, ensuring optimal performance. The valve seat is crafted from laminate stainless steel with a graphite structure, offering compatibility for both hard and soft sealing, alongside precision engineering and advanced technology.

Comprising the valve body, butterfly disc, laminate seal as the valve seat, valve stem, transmission mechanism, and other key components, this product finds extensive applications in industries such as metallurgy, electric power, petroleum, chemical, air and gas handling, as well as water supply and drainage pipelines.

Triple Eccentric Butterfly Valve-Features

There are three eccentrics (offsets) in this design. The first eccentric is the deviation of the shaft from the centerline of the sealing face. The second eccentric is the deviation of the shaft from the centerline of the pipe and valve. The third eccentric is characterized by the unique included angle between the oblique taper angle of the eccentric seat and the centerline of the pipe. This configuration ensures that the seat is completely disengaged from the sealing ring throughout the entire opening and closing process. This structure not only utilizes the cam effect but also eliminates the possibility of abrasion and leakage.

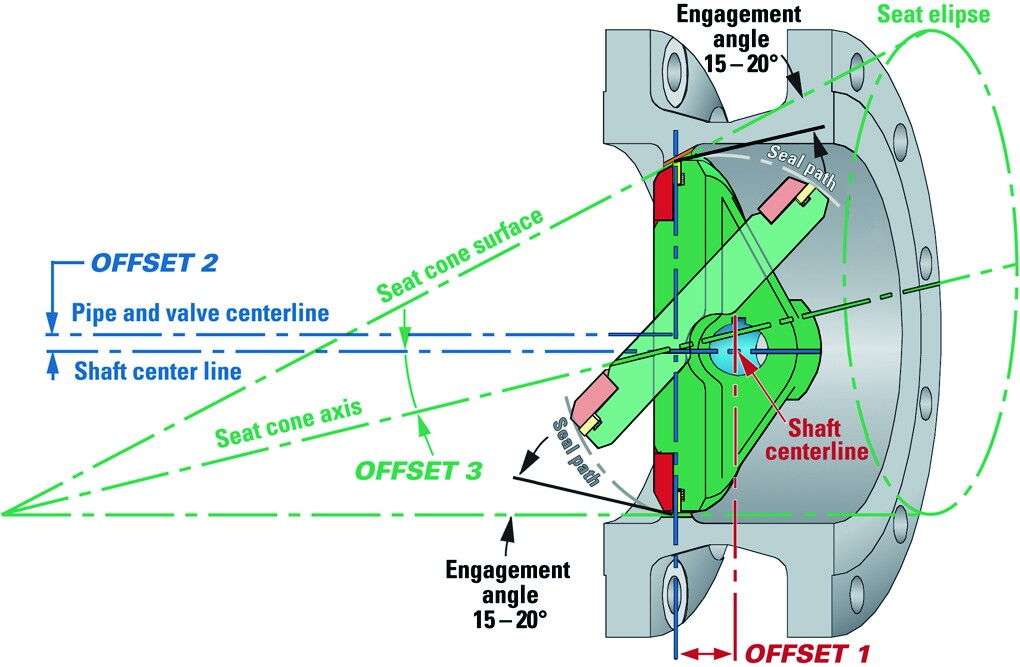

Butterfly Valve Triple Offsets Structure Design Drawing

1. Elastic property of composite metal sealing ring to perform zero leakage.
2. Torque seal to ensure two-way zero leakage.
3. STL one piece hard surface seat may be adapted to many working conditions, which is featured by long service life and easy maintenance.
4. One piece cast body, face to face dimensions conforming to ISO 5752, ASME B16.10 and API 609, replacement to high performance butterfly valves and other types of valves, easy and flexible installation.
5. Intrinsically fireproof property thanks to all metal structure and leak tight performance.
6. Anti-blowout stem for high dependability, completely conforming to API 609
7. The stem of triple eccentric butterfly valve is a shaft. The stem and disc are connected by key or pin-key combination.

High Temperature Triple Eccentric Butterfly Valve - Specifications and Materials

1. Design: API 609, ASME B16.34, AWWA C504, BS EN 593
2. Face to Face: API 609, AWWA C504, BS 2080, and ISO 5752
3. Flange End: ASME B16.5, ASME B16.47, BS EN 1092, ISO 7005, GOST
4. Inspection Test: API 598, BS EN 12266, ISO 528
5. Materials Choose Body Materials: Carbon Steel ASTM A216 WCB, WCC, Low Temperature Carbon Steel ASTM A352 LCB, A352 LCC, A352 LC1, A352 LC2; Alloy Steel Chrome Moly ASTM A217 WC6, A217 C5, A217 WC5, A217 C12, A217 C12A, A217 WC9, 1.7335, 1.7380, 1.7362, 1.7386, 1.4903; STAINLESS STEEL ASTM A351 CF3, A351 CF8, A351 CF3M, A351 CF8M, A351 CF8C, 1.4301, 1.4306, 1.4401, 1.4404, 1.4550, 1.4438; ALLOY 20 ASTM A351 CN7M, N08020, 1.4438; DUPLEX STEEL 2205 ASTM A351 CD3MN, A890 2205, S31803, 1.4462; SUPER DUPLEX STAINLESS STEEL ASTM A351 CD4MCu, A890 5A, S32750, 1.4501; SUPER DUPLEX F55, ASTM A995 CD3MWCuN, S32760
6. Disc Materials: ASTM A216 WCB, WCC, ASTM A352 LCB, ASTM A351 CF8M, CF3M, CF8, CF3, ASTM A890 4A, 5A, ALLOY 20, Duplex Stainless Steel, Monel, Hastelloy Steel
7. Seat Materials: SS 304 + Graphite, SS 316 + Graphite, PTFE
8. Pressure Range: PN10, PN16, PN25, PN40, PN63, PN100, 150 LB, 300 LB, 600 LB, 900 LB (PN10-PN100, Class 150-900 LB)
9. Size Range: DN50-DN3200, 2 Inch - 128 Inch
10. Drive Mode: Manual/Worm gear/Electric/Pneumatic
11. Field of Application: Electric /Hydraulic/Municipal Engineering etc; Water/Sea water/Gas etc.
