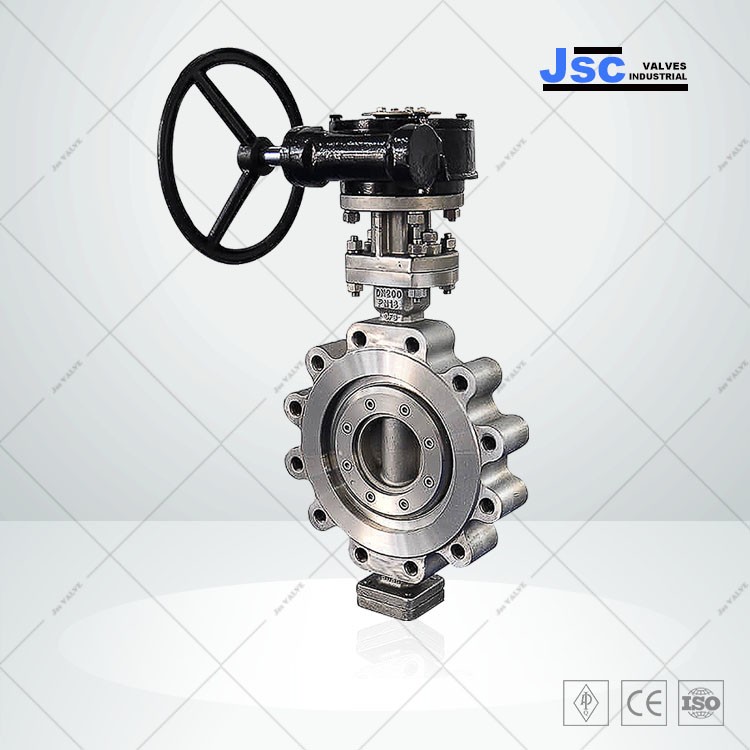

High Performance Butterfly Valve, 2-128 Inch, 150-900 LB
Key Specifications / Features
Model no.: JSC-231124-EBV-108
Hits: 20
We manufacture high-performance butterfly valves in sizes ranging from 2 to 128 inches, meeting MSS SP-68, API 609, EN 593, and AWWA C504 standards. These valves are suitable for 150-900 LB applications, crafted from alloy, stainless, and carbon steel, and are available with both soft and metal seals for versatile industrial use. Trust us for superior, tailored valve solutions.
Request a quote
Tags
Detail Information
High Performance Butterfly Valve
The high performance butterfly adopts with double eccentric and spherical sealing surface and single piece flexible lip seal seat, which is suitable for the occasions requiring reliable sealing and good regulating characteristics. Due to the design of double eccentric butterfly valve, the valve has good tight sealing performance and long service life. It can be used to cut off or adjust the flow quickly.
High Performance Butterfly Valve-Features
Uni-directional and Bi-directional as optional
Soft seat and metal seat as optional, soft seat Teflon, RPTFE, PTFE, metal to metal seat, and Seat can be replaced
Self compensating for wear and temperature
Seat energizer fully isolated by PTFE envelope
Cavities are minimized to avoid ingress of particulates
High Performance Butterfly Valve-Specifications and Materials
Manufacturing: MSS SP-68/API 609
Fire safe: API 607
Face to face: MSS SP 68/API 609 B/ISO 5752 Short
Flange end: ANSI B 16.47
Leakage Test: MSS SP-61
Test: API 598
Eccentric Double Offset Seating Design
Leakage of Soft Seated version is ZERO
Flange, Wafer and Wafer, Lug end are available
Soft and Metal Seal are available
Materials Choose Body Materials: Carbon Steel ASTM A216 WCB, WCC, Low Temperature Carbon Steel ASTM A352 LCB, A352 LCC, A352 LC1, A352 LC2; Alloy Steel Chrome Moly ASTM A217 WC6, A217 C5, A217 WC5, A217 C12, A217 C12A, A217 WC9, 1.7335, 1.7380, 1.7362, 1.7386, 1.4903; STAINLESS STEEL ASTM A351 CF3, A351 CF8, A351 CF3M, A351 CF8M, A351 CF8C, 1.4301, 1.4306, 1.4401, 1.4404, 1.4550, 1.4438; ALLOY 20 ASTM A351 CN7M, N08020, 1.4438; DUPLEX STEEL 2205 ASTM A351 CD3MN, A890 2205, S31803, 1.4462; SUPER DUPLEX STAINLESS STEEL ASTM A351 CD4MCu, A890 5A, S32750, 1.4501; SUPER DUPLEX F55, ASTM A995 CD3MWCuN, S32760
Disc Materials: ASTM A216 WCB, WCC, ASTM A352 LCB, ASTM A351 CF8M, CF3M, CF8, CF3, ASTM A890 4A, 5A, ALLOY 20, duplex stainless steel, Monel, hastelloy steel Pressure: PN10, PN16, PN25, PN40, PN63, PN100, 150 LB, 300 LB, 600 LB, 900 LB (PN10-PN100, Class 150-900 LB)
Size: DN50-DN3200, 2 Inch - 128 Inch
Drive Mode: Manual/Worm gear/Electric/Pneumatic
Field of Application: Electric/Hydraulic/Municipal Engineering etc; Water/Sea water/Gas etc.
The high performance butterfly adopts with double eccentric and spherical sealing surface and single piece flexible lip seal seat, which is suitable for the occasions requiring reliable sealing and good regulating characteristics. Due to the design of double eccentric butterfly valve, the valve has good tight sealing performance and long service life. It can be used to cut off or adjust the flow quickly.
High Performance Butterfly Valve-Features
Uni-directional and Bi-directional as optional
Soft seat and metal seat as optional, soft seat Teflon, RPTFE, PTFE, metal to metal seat, and Seat can be replaced
Self compensating for wear and temperature
Seat energizer fully isolated by PTFE envelope
Cavities are minimized to avoid ingress of particulates
High Performance Butterfly Valve-Specifications and Materials
Manufacturing: MSS SP-68/API 609
Fire safe: API 607
Face to face: MSS SP 68/API 609 B/ISO 5752 Short
Flange end: ANSI B 16.47
Leakage Test: MSS SP-61
Test: API 598
Eccentric Double Offset Seating Design
Leakage of Soft Seated version is ZERO
Flange, Wafer and Wafer, Lug end are available
Soft and Metal Seal are available
Materials Choose Body Materials: Carbon Steel ASTM A216 WCB, WCC, Low Temperature Carbon Steel ASTM A352 LCB, A352 LCC, A352 LC1, A352 LC2; Alloy Steel Chrome Moly ASTM A217 WC6, A217 C5, A217 WC5, A217 C12, A217 C12A, A217 WC9, 1.7335, 1.7380, 1.7362, 1.7386, 1.4903; STAINLESS STEEL ASTM A351 CF3, A351 CF8, A351 CF3M, A351 CF8M, A351 CF8C, 1.4301, 1.4306, 1.4401, 1.4404, 1.4550, 1.4438; ALLOY 20 ASTM A351 CN7M, N08020, 1.4438; DUPLEX STEEL 2205 ASTM A351 CD3MN, A890 2205, S31803, 1.4462; SUPER DUPLEX STAINLESS STEEL ASTM A351 CD4MCu, A890 5A, S32750, 1.4501; SUPER DUPLEX F55, ASTM A995 CD3MWCuN, S32760
Disc Materials: ASTM A216 WCB, WCC, ASTM A352 LCB, ASTM A351 CF8M, CF3M, CF8, CF3, ASTM A890 4A, 5A, ALLOY 20, duplex stainless steel, Monel, hastelloy steel Pressure: PN10, PN16, PN25, PN40, PN63, PN100, 150 LB, 300 LB, 600 LB, 900 LB (PN10-PN100, Class 150-900 LB)
Size: DN50-DN3200, 2 Inch - 128 Inch
Drive Mode: Manual/Worm gear/Electric/Pneumatic
Field of Application: Electric/Hydraulic/Municipal Engineering etc; Water/Sea water/Gas etc.
