Aluminum Bronze C95800 Butterfly valve, 32 Inch, 300 LB
Key Specifications / Features
Model No.: JSC-231219-EBV-01 Hits: 18
Introducing our Aluminum Bronze C95800 Butterfly Valve, provided with precision and quality. This valve adheres to API 609 standards and is designed for efficient fluid control in applications with a size of 32 inches (DN800). With a Class 300 LB pressure rating (PN50), the valve features a three eccentric design for enhanced performance. The one-piece cast body ensures durability and reliability. Elevate your valve solutions with the precision and quality of our Aluminum Bronze C95800 Butterfly Valve.
Request a quote
Tags:
Detail Information
Aluminum Bronze C95800 Butterfly valve 32 Inch 300 LB
These butterfly valves are commonly used in systems that need to isolate or regulate the flow of seawater. They are designed to be in systems where there are space, weight, and cost considerations. They are also a high-quality valve for seawater service or where the valve is submerged in seawater for commercial applications. Three eccentric laminate hard seal flange butterfly valve is a long-life, energy-saving butterfly valve. Its structure adopts the three-dimensional core principle design; the valve seat adopts the laminate stainless steel with graphite structure of hard and soft sealing compatibility, with exquisite processing and advanced technology. This product is composed of valve body, butterfly disc, laminate seal as valve seat, valve stem, transmission mechanism and other main components. It is widely used in metallurgy, electric power, petroleum, chemical industry, air, gas, combustible gas and water supply and drainage pipeline.
Aluminum Bronze C95800 Butterfly Valve 32 Inch 300 LB - Features

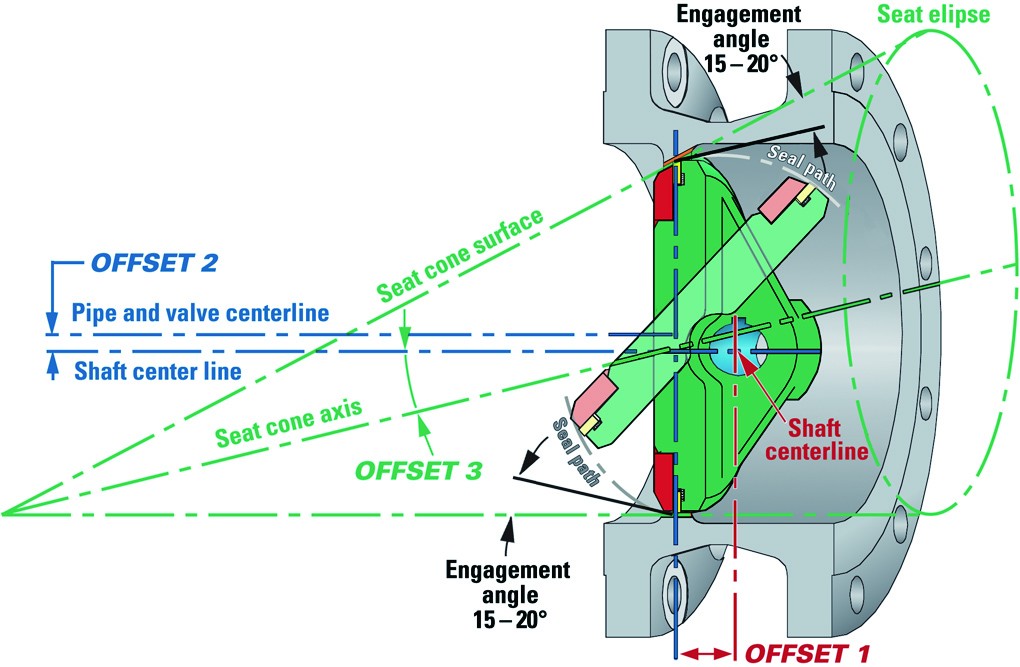

There is three eccentric (offset), the first eccentric, the shaft deviated from the centerline of sealing face; The second eccentric, the shaft deviated from the centerline of pipe and valve; The third eccentric the distinctive included angle between oblique taper angle of eccentric seat and centerline of pipe, thus making seat completely disengaged from the sealing ring during the whole process of open and close. This structure not only uses cam effect, but also eliminates the possibility of abrasion and leakage.
1. Elastic property of composite metal sealing ring to perform zero leakage.
2. Torque seal to ensure two-way zero leakage.
3. STL one piece hard surface seat may adapt to many working conditions, which is featured by long service life and easy maintenance.
4. One piece cast body, face to face dimensions conforming to ISO 5752, ASME B16.10 and API 609, replacement to high performance butterfly valves and other types of valves, easy and flexible installation.
5. Intrinsically fireproof property thanks to all metal structure and leak tight performance.
6. Anti-blowout stem for high dependability, completely conforming to API 609
7. The stem of triple eccentric butterfly valve is a shaft. The stem and disc are connected by key or pin-key combination.
ASTM B148 UNS C95800 is a very strong nickel aluminum bronze alloy. It has good castability, high strength, and outstanding corrosion resistance due to a tough oxide film.
Chemical Composition of Nickel Aluminum Bronze C95800
• Copper: 79.0 min
• Aluminum: 8.5-9.5
• Iron: 3.5-4.5
• Manganese: 0.8-1.5
• Nickel: 4.0-5.0
• Silicon: 0.10 max
• Lead: 0.03 max
Mechanical Property of Nickel Aluminum Bronze C95800
• Tensile Strength: 85 ksi (585 Mpa)
• Yield Strength: 35 ksi (240 Mpa) min
• Elongation in 2 in. or 50.8 mm: 15% min
• Reduction of area: 35% min
• Hardness (3000kg load): not required.
These butterfly valves are commonly used in systems that need to isolate or regulate the flow of seawater. They are designed to be in systems where there are space, weight, and cost considerations. They are also a high-quality valve for seawater service or where the valve is submerged in seawater for commercial applications. Three eccentric laminate hard seal flange butterfly valve is a long-life, energy-saving butterfly valve. Its structure adopts the three-dimensional core principle design; the valve seat adopts the laminate stainless steel with graphite structure of hard and soft sealing compatibility, with exquisite processing and advanced technology. This product is composed of valve body, butterfly disc, laminate seal as valve seat, valve stem, transmission mechanism and other main components. It is widely used in metallurgy, electric power, petroleum, chemical industry, air, gas, combustible gas and water supply and drainage pipeline.
Aluminum Bronze C95800 Butterfly Valve 32 Inch 300 LB - Features
There is three eccentric (offset), the first eccentric, the shaft deviated from the centerline of sealing face; The second eccentric, the shaft deviated from the centerline of pipe and valve; The third eccentric the distinctive included angle between oblique taper angle of eccentric seat and centerline of pipe, thus making seat completely disengaged from the sealing ring during the whole process of open and close. This structure not only uses cam effect, but also eliminates the possibility of abrasion and leakage.
1. Elastic property of composite metal sealing ring to perform zero leakage.
2. Torque seal to ensure two-way zero leakage.
3. STL one piece hard surface seat may adapt to many working conditions, which is featured by long service life and easy maintenance.
4. One piece cast body, face to face dimensions conforming to ISO 5752, ASME B16.10 and API 609, replacement to high performance butterfly valves and other types of valves, easy and flexible installation.
5. Intrinsically fireproof property thanks to all metal structure and leak tight performance.
6. Anti-blowout stem for high dependability, completely conforming to API 609
7. The stem of triple eccentric butterfly valve is a shaft. The stem and disc are connected by key or pin-key combination.
ASTM B148 UNS C95800 is a very strong nickel aluminum bronze alloy. It has good castability, high strength, and outstanding corrosion resistance due to a tough oxide film.
| ALLOY | DESCRIPTION |
|---|---|
| C63000 | C63000 NICKEL ALUMINUM BRONZE C63000 Aluminum Bronze is a high-strength copper aluminum alloy, containing 81% copper, 10% aluminum, 5% nickel, 4% iron, and an excellent choice for applications involving heavy loads, abrasive wear resistance, friction, abrasive wear, and corrosion. The addition of nickel increases the alloy’s strength without diminishing its excellent ductility, toughness, and corrosion resistance. |
| C95500 | C95500 Nickel Aluminum Bronze is One of the toughest non-ferrous alloys known. Characterized as a high tensile, nickel-bearing aluminum bronze, with exceptional yield, compressive strength, high hardness, and fairly high elongation. Exhibits good shock and high-stress qualities. Excellent bearing material suitable for heavy duty, high shock, and high impact applications. Has good resistance to seawater corrosion, heat resistance, good machinability, and weldability. Can be heat treated. |
| C95510HT | C95510HT Nickel Aluminum Bronze is One of the more popular landing gear bushing materials specified today along with C63000 material. The continuous cast alloy is heat treated and exhibits high mechanical strength which meets the properties of C63000. |
| C95500HT | C95500HT Nickel Aluminum Bronze C95500 Nickel Aluminum Bronze is the toughest non-ferrous alloy known. The additional heat treating process further strengthens the mechanical properties of this alloy making it a perfect fit for heavy-duty applications. C95500HT is available from Dura-Bar Metal Services in solids, tubes, and rectangles. |
| C95800 | C95800 Nickel Aluminum Bronze C95800 Nickel Aluminum Bronze is used to produce nuts, worm wheels, bushings, propeller blades, wear plates, and gears. C95800 is available from Dura-Bar Metal Services in solids, tubes, and rectangles. |
Chemical Composition of Nickel Aluminum Bronze C95800
• Copper: 79.0 min
• Aluminum: 8.5-9.5
• Iron: 3.5-4.5
• Manganese: 0.8-1.5
• Nickel: 4.0-5.0
• Silicon: 0.10 max
• Lead: 0.03 max
Mechanical Property of Nickel Aluminum Bronze C95800
• Tensile Strength: 85 ksi (585 Mpa)
• Yield Strength: 35 ksi (240 Mpa) min
• Elongation in 2 in. or 50.8 mm: 15% min
• Reduction of area: 35% min
• Hardness (3000kg load): not required.
