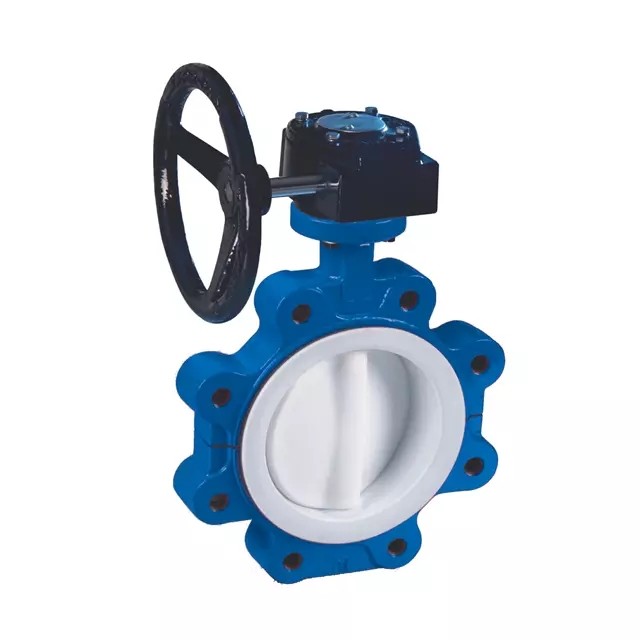

PFA Lined Butterfly Valve, API 609, EN 593, 2-48 Inch, 150 LB
Key Specifications / Features
Model No.: JSC-231124-CBV-93 Hits: 7
As a leading manufacturer in China, we specialize in producing PFA lined butterfly valves with a focus on quality and reliability. Our valves feature carbon and stainless steel bodies, covering sizes from 2 to 48 inches. They are designed to meet Class 150 LB specifications and operate at a pressure of 16 Bar. Manufactured in compliance with API 609, EN 593, and BS 5155 standards, our PFA lined butterfly valves are equipped with PTFE seat liners, ensuring effective and durable performance in various applications.
Request a quote
Tags:
Detail Information
PFA Lined Butterfly Valve
Fluorine lined butterfly valve and rubber lined butterfly valve are widely used in many fields, such as petroleum, chemical industry, metallurgy, hydropower and so on. In the well-known butterfly valve technology, its sealing form mostly adopts the sealing structure, and the sealing materials are rubber, polytetrafluoroethylene, etc

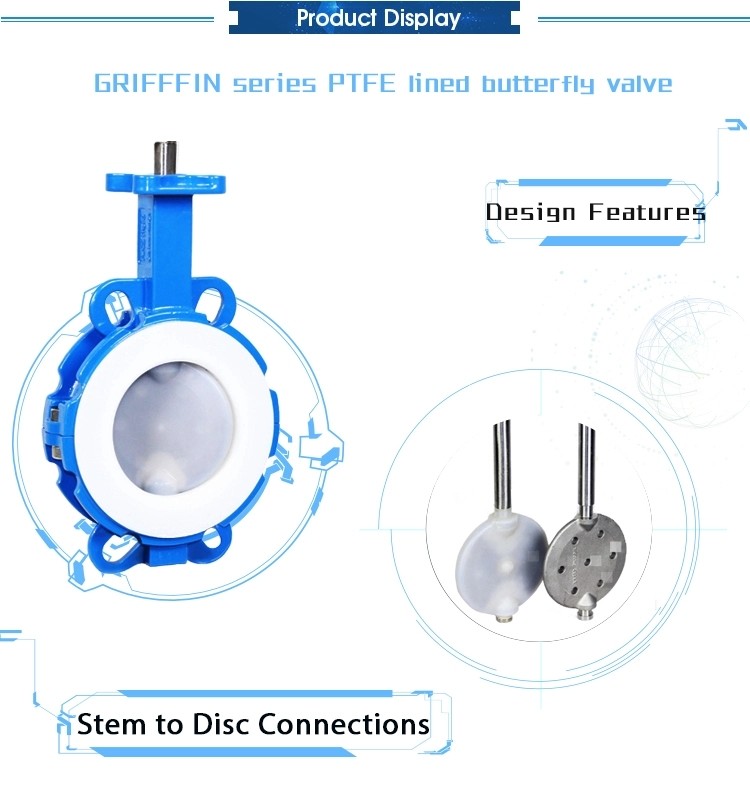

PFA Lined Butterfly Valve-Features

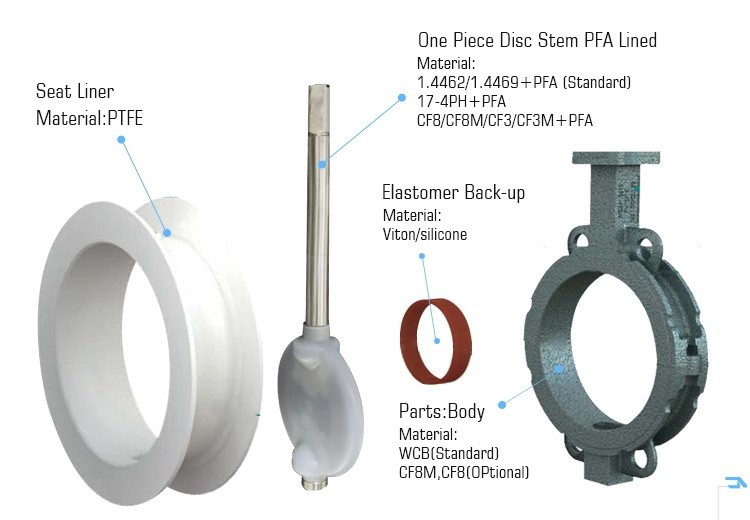

1. One piece disc stem PFA lined
2. Elastomer back up material viton, silicone
3. Seat liner material PTFE
4. Radial lip seal between body and disc for better seal performance
5. Isostatic molded PTFE seat for consistent density throughout the seat areas.
PFA Lined Butterfly Valve-Specifications and Materials
1. Design standard: API 609, EN 593, BS 5155
2. Test and inspection standard: DIN 3230, API 598, EN 12266-1
3. Fact to face standard: API 609, EN 558-1, ISO 5752, DIN 3202
4. Medium: water, sewage, oil, food, gas and so on.
5. Flange connection: ASME B16.1 125 LB & 150 LB, DIN 2501 PN10/16, BS 4504 PN10/16, JIS B2220 10K and so on.
6. Working pressure: 10 bar, 16 bar, Class 150 LB
7. Size range: 2 Inch - 48 Inch (DN50-DN1200)
Fluorine lined butterfly valve and rubber lined butterfly valve are widely used in many fields, such as petroleum, chemical industry, metallurgy, hydropower and so on. In the well-known butterfly valve technology, its sealing form mostly adopts the sealing structure, and the sealing materials are rubber, polytetrafluoroethylene, etc
PFA Lined Butterfly Valve-Features
1. One piece disc stem PFA lined
2. Elastomer back up material viton, silicone
3. Seat liner material PTFE
4. Radial lip seal between body and disc for better seal performance
5. Isostatic molded PTFE seat for consistent density throughout the seat areas.
PFA Lined Butterfly Valve-Specifications and Materials
1. Design standard: API 609, EN 593, BS 5155
2. Test and inspection standard: DIN 3230, API 598, EN 12266-1
3. Fact to face standard: API 609, EN 558-1, ISO 5752, DIN 3202
4. Medium: water, sewage, oil, food, gas and so on.
5. Flange connection: ASME B16.1 125 LB & 150 LB, DIN 2501 PN10/16, BS 4504 PN10/16, JIS B2220 10K and so on.
6. Working pressure: 10 bar, 16 bar, Class 150 LB
7. Size range: 2 Inch - 48 Inch (DN50-DN1200)
