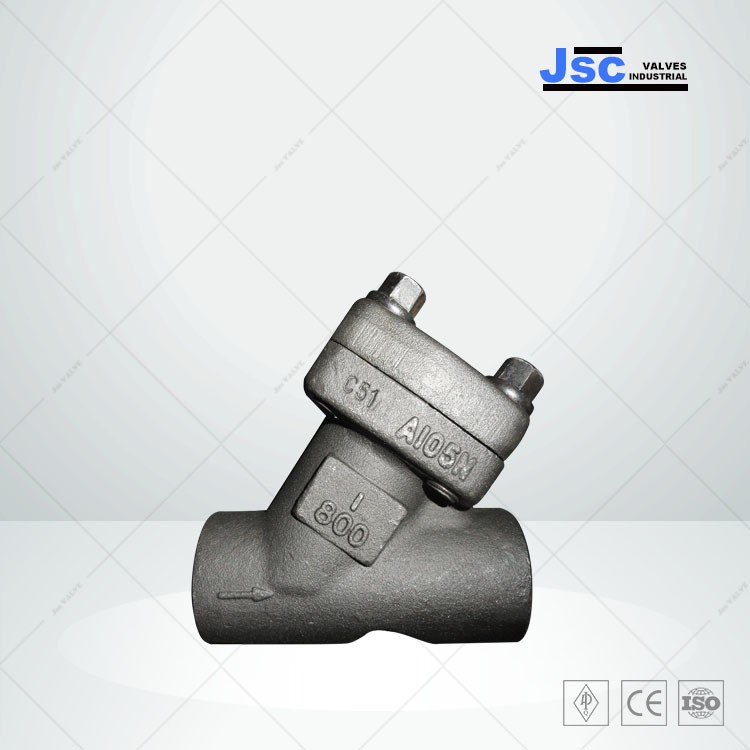

Forged Y strainer, API 602, 1/2-2 Inch, Class 150-800 LB
Key Specifications / Features
Model No.: JSC-231124-YS-118 Hits: 0
Source premium API 602 Y-Strainers from our reputable supplier. Crafted from forged steel, including ASTM A105N, F11, F22, LF3, F304, F316L, F304L, these strainers ensure durability and performance. Available in sizes ranging from 1/2 to 2 inches (DN15 - DN50) and designed to withstand Class 150-800 LB, each strainer features a reliable SS 304 or SS 316 screen. Elevate your industrial processes with these high-quality Y strainers.
Request a quote
Tags:
Detail Information
Forged Y strainer
Y-type filter is used in water, oil and gas pipelines and various equipment. It mainly removes the medium in the pipe to protect the pressure reducing valve, pressure relief valve, constant water level valve and water pump, so as to achieve normal operation. Please install it at the inlet. Generally, the water filter screen is 10-30 mesh / cm2, the air filter screen is 40-100 mesh / cm2, and the oil filter screen is 60-200 mesh / cm2.
The Y-type strainer is installed at the front end of each matching valve in the water inlet pipeline. When the medium in the pipeline enters the filter first, the medium enters into the connected valve through the filter screen, and the impurities are left in the filter barrel, so that all kinds of valves will not be lost due to mechanical debris stuck in the sealing ring.
Forged Y strainer-Features
Designed to ASME B16.34 the strainer bodies are produced with a superior wall thickness for corrosion allowance.The Y-type strainer screen adopts stainless steel double-layer net structure, which is firm and durable, and has the characteristics of advanced structure, small flow resistance and convenient sewage discharge.
The mesh number of the filter screen should be set according to the user's needs. Generally, the mesh size of water supply network is 18-30 mesh, that of ventilation network is 40-100 mesh, and that of oil mesh is 100-480 mesh.
Strainers are available with But-welded or threaded (NPT/BSP/BSPT) or socket weld inlet and outlet connections.
SS 304 perforated screens are standard.
Drain/Blow-off connection furnished with plug as standard.
Forged Y strainer-Specifications and materials
Design: API 602
Face to Face: API 602
Flange ends: ASME B16.5
Butt-weld ends: ASME B16.25
Threaded Ends: ASME B1.20.1
Socket-weld Ends: ASME B16.11
Valves Marking: MSS SP-25
Inspection and testing: API 598
Body material ASTM A105N, F11, F22, LF2, LF3, F304, F316L, F304L, F51, F55, F1, F5, F91
Trim material F6 stellite SS 304 STL, SS 316
Size range: 1/2 - 2 Inch, DN15 - DN50
Pressure range: Class 150 - 800 LB
