Butt Weld Ball Valve, API 6D, API 608, 1/2-4 IN, 150-2500 LB
Key Specifications / Features
Model No.: JSC-231117-FBV-23 Hits: 2
Explore precision and versatility at our Butt Weld Ball Valve Factory, known for its Two or Three Piece Body designs. Engineered to meet the stringent standards of API 6D, API 608, and BS 5351, our valves are offered in sizes ranging from 1/2 to 4 inches, with Class ratings from 150 to 2500 LB. Fabricated with excellence in Alloy, Carbon, or Stainless Steel, these valves assure dependable performance across a wide spectrum of industrial applications.
Request a quote
Tags:
Detail Information

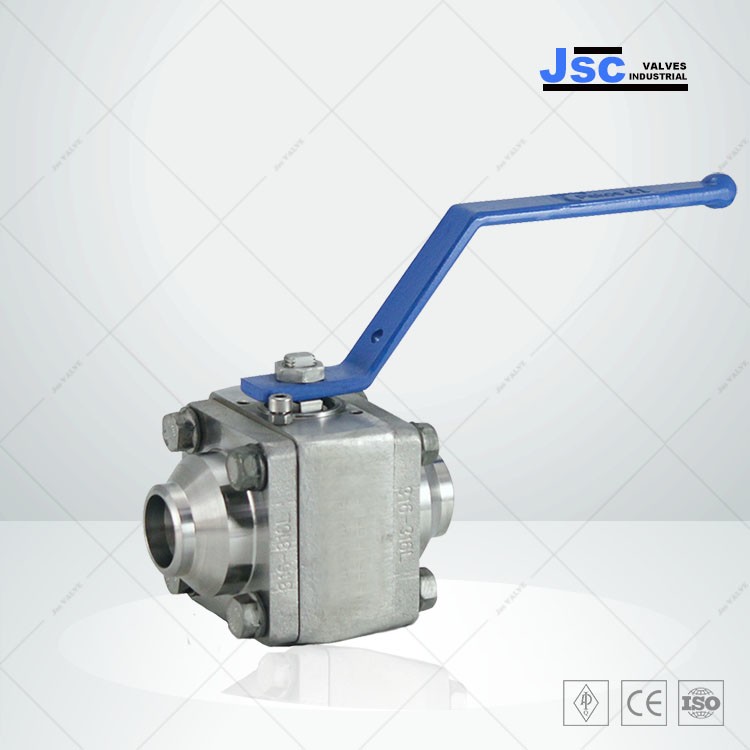

Butt Weld Ball Valve
The closing part of the butt-welded ball valve is a sphere, which is a valve that relies on the sphere to rotate 90 degrees around the center line of the valve body to achieve opening and closing. The straight-through ball valve is mainly used to cut off the medium in the pipeline. There are two-piece and three-piece structure. Butt welding methods include socket welding, groove welding, and flat welding. Butt-welded ball valve is a new type of valve that has been widely used in recent years. This valve can be installed horizontally or vertically.
JSC also produces the ball valves as below,
Buttweld ends ball valve
Seal Welded High Pressure Ball Valve, Butt Weld Ends
Maintenance Design Ball Valve, Butt Weld Ends,
Ball Valve Extended Butt Weld Ends
SIZE RANGE AND PRESSURE CLASS
Size from 1/2 Inch to 4 Inch (DN15-DN100)
Pressure from 150 LBS to 2500 LBS (PN16-PN420)
DESIGN STANDARDS
Design / Manufacture as per the standards: MFG, API 6D, API 608, ASME B16.34, DIN 3357, EN 13709, GB/T 12237, BS 5351, JIS B2071
Face to Face Length (Dimension) as per the standards: MFG, ASME B16.10, EN 558-1 Gr. 14 (DIN 3202-F4), DIN 3202-F5, DIN 3202-F7, BS 5163
Butt Welded Ends Standard: ASME B16.25, EN 12627, BS 2080, GB/T 12224, DIN 3239
Testing according to the standards: API 598, EN 12266-1, EN 1074-1, ISO 5208, DIN2401, JIS B2003
TECHNICAL FEATURES
Fire-Safety Design
Full and Reduced Port Sizes are available
All Models are NACE MR0175 Compliant
Elongated Packing Gland for Ease of Access When Automated
Standard ISO Actuator Mounting Pads on All Sizes
Standard Locking Stainless Steel Handles
Electrically Grounded Stem
Optional PEEK Seats/Metal Seats for High Temp Services
Regular port, Split body design, Socket welding ends
Three-piece body design, Threaded or socket welding ends
Regular port, Three-piece body design, Threaded or Butt-welding ends
Blowout-proof stem
Swing-away body for maintenance ease
Butt welding ends to BS 5351
Butt welding ends to ASME B16.125
CONSTRUCTION MATERIALS
General Cast Carbon Steel:
ASTM A216 WCB, WCC, WCA, GP240GH 1.0619 / GS-C25
ASTM A105, C22.8/ P250GH (1.0460/1.0432)
Low Temperature Carbon Steel (LTCS):
ASTM A352 LCB, LCC, LCA, GS-CK25
ASTM A350 LF2, TStE 355 / P355QH1 (EN 1.0571/1.0566)
Alloy Steel:
ASTM A352 LC1, LC2, LC2-1, LC3, LC4, LC9, ASTM A743 CA6NM
GS-CK16, GS-CK24, GS-10Ni6, GS-10ni14
ASTM A350 LF1, LF3, LF5, LF6, LF9, LF787
High Temperature Steel (Chrome Moly) / Alloy Steel:
ASTM A217 WC1, WC6, WC9, C5, C12, C12A
GS-22Mo4 / G20Mo5 (EN 1.5419), GS-17CrMo55 / G17CrMo5-5 (EN 1.7357)
ASTM A182 F1, 15Mo3 16Mo3 (EN 1.5415)
ASTM A182 F11, 13 CrMo 4 4 / 13CrMo4-5 (EN 1.7335)
ASTM A182 F22, 10CrMo 9 10 / 11CrMo9-10 (EN 1.7383/1.7380)
ASTM A182 F91, X10CrMoVNb9-1 (EN 1.4903)
Austenitic Stainless Steel / Alloy Steel:
UNS S30400, S30403, S30409, ASTM A351 CF8, CF3, CF10
G-X6CrNi189 / GX5CrNi19-10 (EN 1.4308)
UNS S31600, S31603, S31609, ASTM A351 CF8M, CF3M. CF10M
GX5CrNiMo19-11-2 / G-X6CrNiMo18.10 (EN 1.4408)
UNS S34700, S34709, ASTM A351 CF8C
G-X5CrNiNb189 / GX5CrNiNb19-11 (EN 1.4552)
AISI 316Ti, X6CrNiNo17122 / X6CrNiMoTi17-12-2 (EN 1.4571)
ALLOY 20 / UNS N08020, ASTM A351 CN7M
ASTM A182 F304 X5CrNi1810 / X5CrNi18-10 (EN 1.4301)
ASTM A182 F304L X2 CrNi 19 11 (EN 1.4306)
ASTM A182 F316 X5CrNiMo 17 12 2 / X5CrNiMo17-12-2 (EN 1.4401)
ASTM A182 F316L X2 CrNiMo 17 13 2 / X2CrNiMo17-12-2 (EN 1.4404）
ASTM A182 F316 Ti X6 CrNiMoTi 17 12 2 / X6CrNiMoTi17-12-2 (EN 1.4571)
ASTM A182 F321 X6 CrNiTi 18 10 / X6CrNiTi18-10 (EN 1.4541)
ASTM A182 F347 X6CrNiNb1810 / X6CrNiTi18-10C (EN 1.4550)
ASTM A182 F44 (6MO) (EN 1.4547)
ASTM A182 F20 * (ALLOY 20)
Ferritic-Austenitic / Duplex / Super Duplex Stainless Steel:
UNS S31803 / S32205 (Duplex 2205), ASTM A890/A995 GR.4A (UNS J92205) / A351 CD3MN
UNS S32750 (Super Duplex 2507), ASTM A890 / A995 GR.5A / A351 CE8MN (CD4MCu)
UNS S32760, ASTM A890 / A995 GR.6A (CD3MWCuN)
ASTM A182 F51, X2 CrNiMoN 22 5 3 / X2CrNiMoN22-5-3 (EN 1.4462)
ASTM A182 F52 (EN 1.4460)
ASTM A182 F53, X2CrNiMoCuN 25.6.3 (EN 1.4410)
ASTM A182 F55, X2CrNiMoCuWN 25.7.4 (EN 1.4501)
ASTM A182 F60 (EN 1.4462)
Other Materials:
Alloy 20 ASTM B462 / UNS N08020
Monel 400 / UNS N04400 ASTM B564-N04400 / A494 M35-1 NiCu30Fe (EN 2.4360)
Nickel Alloy 904L / UNS N08904 X1NiCrMoCu25.20.5 (EN 1.4539)
Inconel 625 / UNS N06625 / ASTM B564-N06625 / ASTM A494-CW6MC
NiCr22Mo9Nb (EN 2.4856)
Inconel 825 / UNS N08825 / ASTM B564-N08825 / ASTM A494 CU5MCuC (EN 2.4858)
NiCr21Mo (EN 2.4858)
