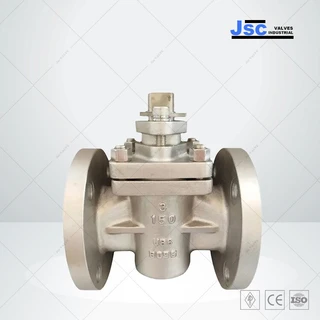

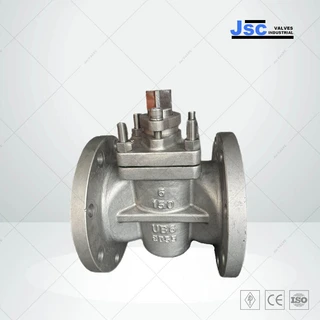

UB6 Plug Valve, SS 904L, PTFE Sleeved, DIN 3202, DN200, PN16
Key Specifications / Features
Model No.: JSC-240306-SPV-01 Hits: 7
Explore our premium PTFE sleeved plug valves meticulously engineered to deliver exceptional performance. Crafted to DIN 3202 and API 599 standards with UB6 specifications, these valves feature a robust construction using SS 904L (UNS N08904) material, also known as DIN 1.4539. With a diameter of DN200 (8 inches) and a pressure rating of PN16 (Class 150 LB), they ensure reliable operation under various conditions. Equipped with a worm gear actuator, these valves offer precise control and durability for your industrial applications.
Request a quote
Tags:
Detail Information
PTFE Sleeved Plug Valve
Valve description: Sleeved plug valve, PTFE seat
Body material: UB6 (Stainless Steel 904L)
Nominal diameter: DN200 (8 Inch)
Nominal pressure: PN16 (Class 150 LB)
Face to face: ASME B16.10
Design & manufacture: API 599
Test and inspection: API 598
Metal seat: PTFE
End connection: RF
Mode of operation: Wormgear
Super Austenitic UB6, SS 904L Plug Valve material code also can be UNS N08904, DIN 1.4539. Super Austenitic UB6 904L Plug Valve is a high alloy austenitic stainless steel plug valve with low carbon content and excellent corrosion resistance in dilute sulfuric acid. It is designed for harsh corrosion conditions.
Super Austenitic UB6, SS 904L Plug Valve has high chromium content and sufficient nickel content. The addition of copper makes it have strong acid resistance, especially high resistance to chloride gap corrosion and stress corrosion cracking, and is not easy to appear corrosion spots and cracks. The pitting resistance is slightly better than other steel, with good machinability and weldability, and can be used in pressure vessels.
PTFE sleeved plug valve according to ANSI is applicable to the cutting and connection of pipelines medium that are used in various industries as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc under nominal pressure of Class 150 to 900 LB, and working temperature of -29 to 180℃.
PTFE Sleeved Plug Valve-Feature
The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
Its sealing is realized by the sealing face around the sleeve. It has unique 360 degree metal edge for protection and fixing of the sleeve.
There is no cavity the valve for accumulation of medium.
Metal edge provides the function of self-cleaning when the plug is rotated, applicable to the operation condition that is glutinous and apt to smudge
Its characteristic double-direction flow makes installation and use more convenient.
Bi-directional in-line bubble-tight seal independent of line pressure
Static electricity eliminator is always in contact with plug and releases the static electricity coming from the free floating in the liquid media.
PTFE Sleeved Plug Valve - Specifications and Materials
Design & manufacture: API 599, ASME B16.34, DIN 3202
Pressure Rating: Class 150 LB – 600 LB, 1.0 MPa - 11.0 MPa, JIS 10K - 40K
Size Range: NPS 1/2 Inch - 24 Inch, DN15-DN600
Bore: Full bore, Reduced bore
Sleeve Material: PTFE, RPTFE, TFM, GF2P, PPL, PFA
Face to face dimensions: ASME B16.10
Flange ends: ASME B16.5
Butt-weld ends: ASME B16.25
Threaded Ends: ASME B1.20.1
Socket-weld Ends: ASME B16.11
Valves Marking: MSS SP-25
Inspection and testing: API 598
Body Material: ASTM A216 WCB, ASTM A352 LCB, Alloy Steel ASTM A217 WC6, WC9, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M, Duplex ASTM A890 4A, 5A, Special Alloy, Monel, Bronze C95800, Alloy 20
Trim material: ASTM A216 WCB, ASTM A352 LCB, ASTM A105, Alloy Steel ASTM A217 WC6, WC9, ASTM A182 F11, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M, ASTM A182 F304, F316, F304L, F316L, Duplex ASTM A890 4A, 5A, ASTM A182 F51, F55, Special Alloy, Monel, Bronze C95800, Alloy 20
Drive Mode: Manual, Worm gear, Electric, Pneumatic
Field of Application: Electric/Hydraulic/Municipal Engineering etc; Water/Sea water/Gas etc.
