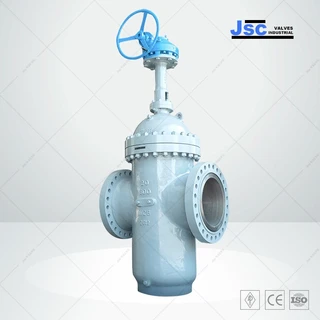

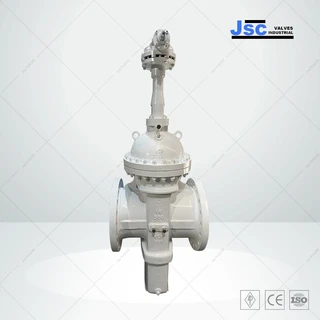

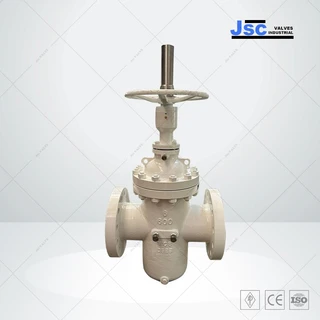

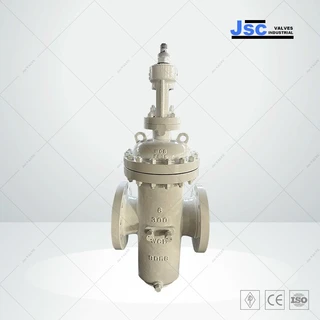

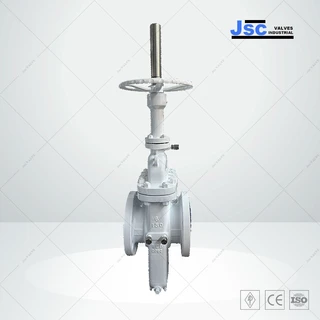

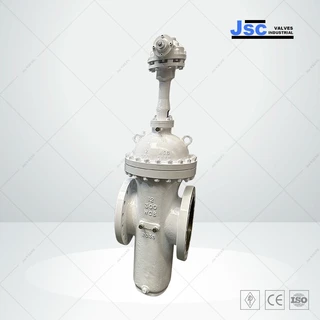

Through Conduit Slab Gate Valve, API 600, API 6D, 2-48 Inch
Key Specifications / Features
Model no.: JSC-231215-CSGAV-01
Hits: 42
Discover our Through Conduit Parallel Disc Slab Gate Valve, sourced from a reputable supplier in China. This valve complies with API 600, API 6D, and ASME B16.34 standards, offering reliability and performance. Available in sizes ranging from 2 to 48 inches and with class ratings of 150-1500 LB, it is crafted from carbon and stainless steel. Trust our commitment to quality for your through conduit parallel disc slab gate valve needs.
Request a quote
Tags
Detail Information
I. Through Conduit Gate Valve Introduction
The through conduit gate valve is a sliding valve whose gate is a parallel gate. The shutter can be a single shutter plate or a double shutter plate with a deployment mechanism in between.
The push force of the gate to the valve seat is controlled by the pressure of the medium acting on the floating gate or floating valve seat. If the through conduit gate valve is a dual shutter through conduit gate valve, the spreading mechanism seen in the two shutters can compensate for this pressure.
1. The valve seat adopts the floating valve seat structure with o-ring sealing and pre-tightening force, and the inlet and outlet of the flat gate valve are sealed in both directions; in addition, the switching torque of this structure is 1/2 of that of the ordinary valve, and the valve can be easily opened and closed.
2. When the flat gate valve is fully opened, the channel is smooth, the flow resistance coefficient is extremely small, and there is no pressure loss, and the pipeline can be cleaned with a hair ball
3. The filling material structure with self-sealing ability is adopted, which does not need to be adjusted frequently, the switch is extremely light, and the sealing performance is reliable. The auxiliary sealing grease injection structure is set at the filling material, the sealing performance is absolutely reliable, and zero leakage is truly achieved; It solves the disadvantage that the general valve packing is most likely to leak.
4. When the through conduit gate valve is closed, the high pressure in the inner cavity can be automatically eliminated, which is convenient to use.
5. The fully enclosed structure has good protection performance and can meet all-weather requirements.
Ⅱ. Applicable Occasions for Through Conduit Gate Valve
1. Class 150 - 900 LB/PN1.0~16.0 MPa (working temperature is -29~121 ℃) oil and natural gas transmission pipeline. The flat gate valve with pilot port also facilitates cleaning of the line.
2. Refined oil transportation line and storage and transportation equipment.
3. Oil and natural gas extraction wellhead devices, that is, valves for oil extraction machines.
4. The flat gate valve has piping for the medium of suspended particles.
5. City gas pipeline.
6. Water works.
Ⅲ. The Advantages of Through Conduit Gate Valve
The flow resistance is small, and the flow resistance without shrinkage is similar to the flow resistance of a short tube. The flat gate valve with pilot hole is installed on the pipeline and can also be cleaned directly with a vacuum cleaner.
Since the gate makes the two valve seat surfaces change, the flat gate valve can also be applied to the medium with suspended particles. The sealing surface of the flat gate valve is actually automatically positioned, and the sealing surface of the valve seat is not damaged by the thermal deformation of the valve body.
In addition, thermal elongation of the valve stem does not overload the sealing surfaces, even if the valve is closed in a cold state. In addition, when the valve is closed, the flat gate valve without the pilot hole does not require high precision in the flapper closing position, so the opening and closing position can be controlled by the electric flat valve stroke.
Features
Size range: 2 Inch - 48 Inch
Pressure range: Class 150 - 1500 LB
Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A217 WC6, WC9, ASTM A351 CF8, CF3, CF3M, CF8M
Design and production standard: API 600, API 6D and ASME B16.34
Distance between flanges: API 6D, ASME B16.10
Connected in accordance with standard: ANSI B16.5, ASME B16.47, ANSI B16.25
Test standard: API 598, API 6D
Actuation: can operate with lever, gear box, pneumatic or electric actuator with handwheel for emergencies.
Medium: The valve is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.
Working temperature: from -46ºC or -50ºC (stainless steel constructions) and -29 ºC (carbon steel constructions) up to 600 ℃
The through conduit gate valve is a sliding valve whose gate is a parallel gate. The shutter can be a single shutter plate or a double shutter plate with a deployment mechanism in between.
The push force of the gate to the valve seat is controlled by the pressure of the medium acting on the floating gate or floating valve seat. If the through conduit gate valve is a dual shutter through conduit gate valve, the spreading mechanism seen in the two shutters can compensate for this pressure.
1. The valve seat adopts the floating valve seat structure with o-ring sealing and pre-tightening force, and the inlet and outlet of the flat gate valve are sealed in both directions; in addition, the switching torque of this structure is 1/2 of that of the ordinary valve, and the valve can be easily opened and closed.
2. When the flat gate valve is fully opened, the channel is smooth, the flow resistance coefficient is extremely small, and there is no pressure loss, and the pipeline can be cleaned with a hair ball
3. The filling material structure with self-sealing ability is adopted, which does not need to be adjusted frequently, the switch is extremely light, and the sealing performance is reliable. The auxiliary sealing grease injection structure is set at the filling material, the sealing performance is absolutely reliable, and zero leakage is truly achieved; It solves the disadvantage that the general valve packing is most likely to leak.
4. When the through conduit gate valve is closed, the high pressure in the inner cavity can be automatically eliminated, which is convenient to use.
5. The fully enclosed structure has good protection performance and can meet all-weather requirements.
Ⅱ. Applicable Occasions for Through Conduit Gate Valve
1. Class 150 - 900 LB/PN1.0~16.0 MPa (working temperature is -29~121 ℃) oil and natural gas transmission pipeline. The flat gate valve with pilot port also facilitates cleaning of the line.
2. Refined oil transportation line and storage and transportation equipment.
3. Oil and natural gas extraction wellhead devices, that is, valves for oil extraction machines.
4. The flat gate valve has piping for the medium of suspended particles.
5. City gas pipeline.
6. Water works.
Ⅲ. The Advantages of Through Conduit Gate Valve
The flow resistance is small, and the flow resistance without shrinkage is similar to the flow resistance of a short tube. The flat gate valve with pilot hole is installed on the pipeline and can also be cleaned directly with a vacuum cleaner.
Since the gate makes the two valve seat surfaces change, the flat gate valve can also be applied to the medium with suspended particles. The sealing surface of the flat gate valve is actually automatically positioned, and the sealing surface of the valve seat is not damaged by the thermal deformation of the valve body.
In addition, thermal elongation of the valve stem does not overload the sealing surfaces, even if the valve is closed in a cold state. In addition, when the valve is closed, the flat gate valve without the pilot hole does not require high precision in the flapper closing position, so the opening and closing position can be controlled by the electric flat valve stroke.
Features
Size range: 2 Inch - 48 Inch
Pressure range: Class 150 - 1500 LB
Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A217 WC6, WC9, ASTM A351 CF8, CF3, CF3M, CF8M
Design and production standard: API 600, API 6D and ASME B16.34
Distance between flanges: API 6D, ASME B16.10
Connected in accordance with standard: ANSI B16.5, ASME B16.47, ANSI B16.25
Test standard: API 598, API 6D
Actuation: can operate with lever, gear box, pneumatic or electric actuator with handwheel for emergencies.
Medium: The valve is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.
Working temperature: from -46ºC or -50ºC (stainless steel constructions) and -29 ºC (carbon steel constructions) up to 600 ℃
