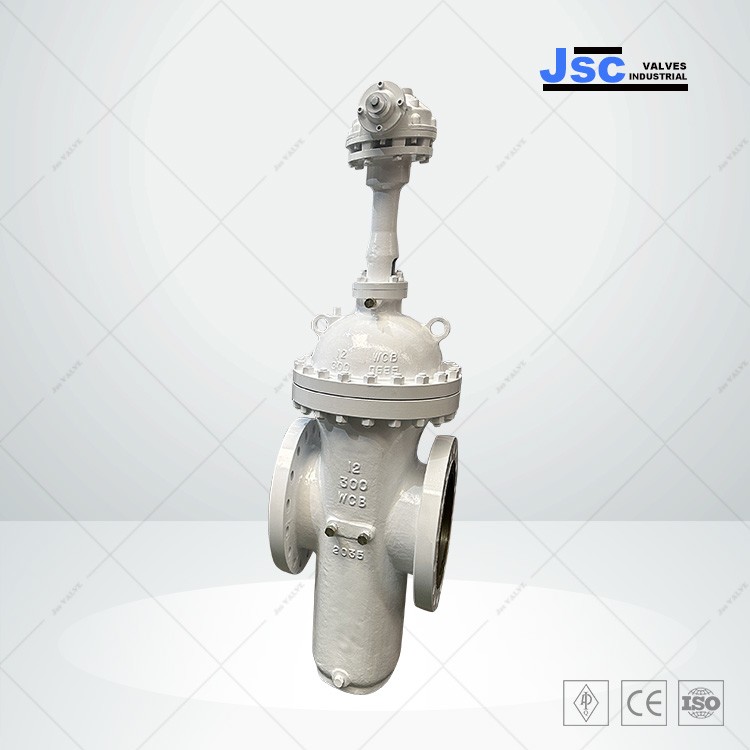

API 6D Slab Gate Valve, ASTM A216 WCB, 300 LB, 12 Inch, RF

Key Specifications / Features

Model No.: JSC-240110-CSGAV-02

Hits: 11
Our API 6D Slab Gate Valve, manufactured in China, is crafted from durable Carbon Steel ASTM A216 WCB. With a size of 12 inches (DN300), this valve is designed for Class 300 LB (PN50) applications. It features a full-bore design, making it piggable and suitable for through conduit operations. The gear operation ensures reliable and efficient valve control. Choose our Slab Gate Valve for its robust construction and dependable performance in your industrial processes.
Request a quote

Detail Information


API 6D Through Conduit Slab Gate Valve

Through-conduit gate valves are isolating valves designed for closing of the working media flow. They can be usedfor temperatures up to 200°C. If the gate valves are used forregulating or throttling purposes, the manufacturer does not guarantee the tightness. The gate valves are full-bore piggable valves with a flow resistance coefficient equal to that of the piping. Therefore the gate valves are suitable especially for long-distance pipeline systems.

Detail Information

Valve description: Slab gate valve, carbon steel, Double Block & Bleed, Full bore, piggable,Through conduit

Body material: ASTM A216 WCB
Gate: ASTM A515 Grade 70, ENP (Electroless Nickel Plating)
Nominal Diameter: 12 Inch
Nominal Class: Class 300 LB
Design / Manufacture: API 6D
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: RF
Mode of Operation: Gear Operation

We also manufacture the valves below:
Slab Gate Valve
API 6D Slab Gate Valve
Through Conduit Gate Valve,
Double Block & Bleed Slab Gate Valve
Double Block & Bleed Through Conduit Gate Valve
Through Conduit Slab Gate Valve

Product Range

Size Range: 2 Inch - 40 Inch (DN50-DN1000)
Pressure Range: Class 150 LB – 1500 LB (PN16-PN250)
Design / Manufacture: API 6D, ASME B16.34, JB/T 5298, BS 5157
Face to Face Length (Dimension): MFG, ASME B16.10, GB/T 12221, JB/T 5298, API 6D
Flanged Dimension: ASME B16.5, EN 1092-1, BS 4504, DIN 2501
Flanged to ASME B16.5 (2 Inch - 24 Inch) and ASME B16.47 Series A / B (26 Inch and above) Clamp / Hub ends on request.
Testing: API 598, API 6D, EN 12266-1, EN 1074-1, ISO 5208

TECHNICAL FEATURES

Floating seat structure
Easily open and close the valve
Full bore, pig-gable
Flow resistance coefficient is very small
Self-sealing capability
Zero leakage
Cavity pressure automatically relief
DBB double-blocking and double bleed function
Bi-directional with preferred flow direction

CONSTRUCTION MATERIALS

General Cast Carbon Steel: ASTM A216 WCB, WCC, WCA, GP240GH (1.0619 / GS-C25)

Low Temperature Carbon Steel (LTCS): ASTM A352 LCB, LCC, LCA, GS-CK25

Alloy Steel:
ASTM A352 LC1, LC2, LC2-1, LC3, LC4, LC9, ASTM A743 CA6NM,
GS-CK16, GS-CK24, GS-10Ni6, GS-10Ni14

High Temperature Steel (Chrome Moly) / Alloy Steel:
ASTM A217 WC1, WC6, WC9, C5, C12, C12A
GS-22Mo4/ G20Mo5 (1.5419), GS-17 CrMo5-5/ G17 CrMo5-5 (1.7357)

Austenitic Stainless Steel/Alloy Steel:
UNS S30400 (S30403) (S30409), ASTM A351 CF8, CF3, CF10
G-X6CrNi189/ GX5CrNi19-10 (1.4308)
UNS S31600 (S31603) (S31609), ASTM A351 CF8M, CF3M, CF10M
GX5CrNiMo19-11-2/G-X6CrNiMo18.10 (1.4408)
UNS S34700 (S34709), ASTM A351 CF8C
G-X5CrNiNb189/GX5CrNiNb19-11 (1.4552)
AISI 316Ti, X6CrNiNo17122/ X6CrNiMoTi17-12-2 (1.4571)
ALLOY 20 / UNS N08020, ASTM A351 CN7M

Ferritic-Austenitic / Duplex / Super Duplex Stainless Steel:
UNS S31803 /S32205 (Duplex 2205), ASTM A890/A995 GR.4A (J92205)/ ASTM A351 CD3MN
UNS S32750 (Super Duplex 2507), ASTM A890/A995 GR.5A / ASTM A351 CE8MN (CD4MCu)
UNS S32760, ASTM A890/A995 GR.6A (CD3MWCuN)

Other Materials:
Alloy 20, ASTM B462 UNS N08020
Monel 400 / UNS N04400 / ASTM B564-N04400) / ASTM A494 M35-1, NiCu30Fe (2.4360)
Nickel Alloy 904L / UNS N08904, X1NiCrMoCu25.20.5 (1.4539)
Inconel 625 / UNS N06625 / ASTM B564-N06625 / ASTM A494-CW6MC, NiCr22Mo9Nb (2.4856)
Inconel 825 / UNS N08825 / ASTM B564-N08825 / ASTM A494 CU5MCuC (2.4858), NiCr21Mo (2.4858)
