Metal Seated Floating Ball Valve, 1/2-10 Inch, 150-2500 LB
Key Specifications / Features
Model No.: JSC-231117-MSBV-29 Hits: 8
Experience excellence with our Metal Seated Floating Ball Valves, proudly crafted in China. Compliant with API 6D, ASME B16.34, and DIN 3357 standards, these valves come in sizes ranging from 1/2 to 10 inches, with Class ratings from 150 to 2500 LB. Available in both 2 and 3 Piece Split Body configurations, our valves offer versatility with NPT, SW, BW, and Flanged Ends. Elevate your industrial operations with precision-engineered reliability.
Request a quote
Tags:
Detail Information

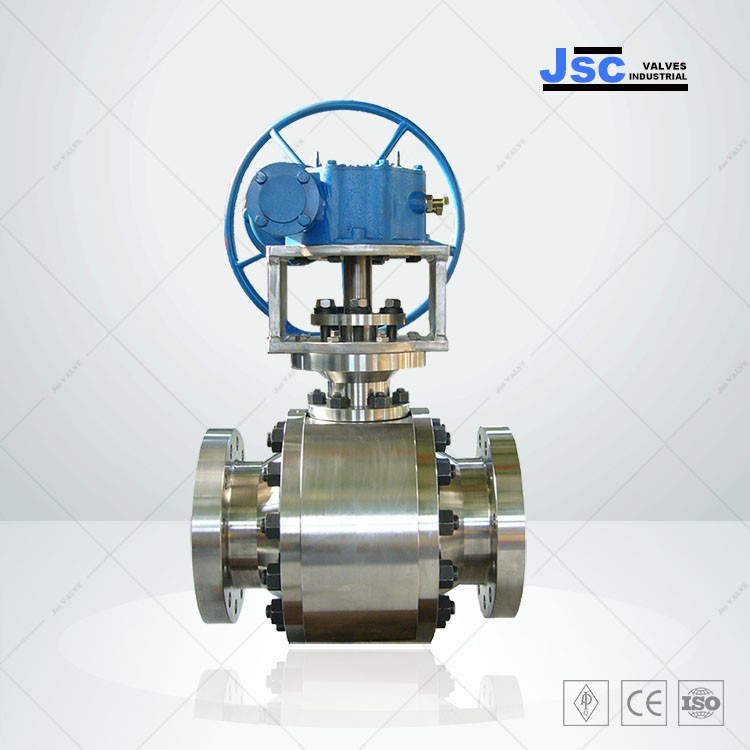

Metal Seated Floating Ball Valve
Metal seated floating ball valve can be made in forged steel and cast steel, with NPT, SW，BW，and flange ends. 2 piece or 3-piece split body as per request. There are two types according to the sealing way. One-way sealing: It can only be sealed in the specified direction, which is the sealing direction marked by the ball valve. Two-way sealing: It can be sealed in both directions.
We manufactures the following ball valves
Side entry metal seated floating ball valve
SIZE RANGE AND PRESSURE CLASS
Size from 1/2 Inch to 10 Inch (DN15-DN250)
Pressure from 150 LBS to 300 LBS (PN16-PN40)
DESIGN STANDARDS
Design / Manufacture as per the standards:API 6D, ASME B16.34, DIN 3357, EN 13709, GB/T 12237, BS 5351
Face to Face Length (Dimension) as per the standards: ASME B16.10, EN 558-1 Gr. 14 (DIN 3202-F4), DIN 3202-F5, DIN 3202-F7, BS 5163, DIN3202, JIS B2002
Flanged Dimension according to the standards: ASME B16.5, EN 1092-1, BS 4504, DIN 2501,
Threaded Ends according to the standards:
BSP Parallel: BS 21Rp-ISO 228/1-ISO 7/1Rp
BSP Taper: BS 21Rc-ISO 7/1Rc-DIN 2999/1
NPT: ANSI B1.20.1
B.W.-P.E.：ANSI B16.25 Sch.40-XS-80-160
S.W.: ANSI B16.11
Testing according to the standards: API 598, API 6D, EN 12266-1, EN 1074-1, ISO 5208
TECHNICAL FEATURES
the flow resistance is small,
Simple structure,
Small size and light weight,
The sealing surface material of the ball valve is made of plastic with good sealing performance,
Convenient operation, rapid opening and closing, convenient for remote control,
It is easy to maintain, the sealing ring is generally movable, and it is convenient to disassemble and replace,
When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the passage of the medium will not cause the erosion of the valve sealing surface.
CONSTRUCTION MATERIALS
General Cast Carbon Steel:
ASTM A216 WCB, WCC, WCA, GP240GH 1.0619 / GS-C25
ASTM A105, C22.8/ P250GH (1.0460/1.0432)
Low Temperature Carbon Steel (LTCS):
ASTM A352 LCB, LCC, LCA, GS-CK25
ASTM A350 LF2, TStE 355 / P355QH1 (EN 1.0571/1.0566)
Alloy Steel:
ASTM A352 LC1, LC2, LC2-1, LC3, LC4, LC9, ASTM A743 CA6NM
GS-CK16, GS-CK24, GS-10Ni6, GS-10ni14
ASTM A350 LF1, LF3, LF5, LF6, LF9, LF787
High Temperature Steel (Chrome Moly) / Alloy Steel:
ASTM A217 WC1, WC6, WC9, C5, C12, C12A
GS-22Mo4 / G20Mo5 (EN 1.5419), GS-17CrMo55 / G17CrMo5-5 (EN 1.7357)
ASTM A182 F1, 15Mo3 16Mo3 (EN 1.5415)
ASTM A182 F11, 13 CrMo 4 4 / 13CrMo4-5 (EN 1.7335)
ASTM A182 F22, 10CrMo 9 10 / 11CrMo9-10 (EN 1.7383/1.7380)
ASTM A182 F91, X10CrMoVNb9-1 (EN 1.4903)
Austenitic Stainless Steel / Alloy Steel:
UNS S30400, S30403, S30409, ASTM A351 CF8, CF3, CF10
G-X6CrNi189 / GX5CrNi19-10 (EN 1.4308)
UNS S31600, S31603, S31609, ASTM A351 CF8M, CF3M. CF10M
GX5CrNiMo19-11-2 / G-X6CrNiMo18.10 (EN 1.4408)
UNS S34700, S34709, ASTM A351 CF8C
G-X5CrNiNb189 / GX5CrNiNb19-11 (EN 1.4552)
AISI 316Ti, X6CrNiNo17122 / X6CrNiMoTi17-12-2 (EN 1.4571)
ALLOY 20 / UNS N08020, ASTM A351 CN7M
ASTM A182 F304 X5CrNi1810 / X5CrNi18-10 (EN 1.4301)
ASTM A182 F304L X2 CrNi 19 11 (EN 1.4306)
ASTM A182 F316 X5CrNiMo 17 12 2 / X5CrNiMo17-12-2 (EN 1.4401)
ASTM A182 F316L X2 CrNiMo 17 13 2 / X2CrNiMo17-12-2 (EN 1.4404）
ASTM A182 F316 Ti X6 CrNiMoTi 17 12 2 / X6CrNiMoTi17-12-2 (EN 1.4571)
ASTM A182 F321 X6 CrNiTi 18 10 / X6CrNiTi18-10 (EN 1.4541)
ASTM A182 F347 X6CrNiNb1810 / X6CrNiTi18-10C (EN 1.4550)
ASTM A182 F44 (6MO) (EN 1.4547)
ASTM A182 F20 * (ALLOY 20)
Ferritic-Austenitic / Duplex / Super Duplex Stainless Steel:
UNS S31803 / S32205 (Duplex 2205), ASTM A890/A995 GR.4A (UNS J92205) / A351 CD3MN
UNS S32750 (Super Duplex 2507), ASTM A890 / A995 GR.5A / A351 CE8MN (CD4MCu)
UNS S32760, ASTM A890 / A995 GR.6A (CD3MWCuN)
ASTM A182 F51, X2 CrNiMoN 22 5 3 / X2CrNiMoN22-5-3 (EN 1.4462)
ASTM A182 F52 (EN 1.4460)
ASTM A182 F53, X2CrNiMoCuN 25.6.3 (EN 1.4410)
ASTM A182 F55, X2CrNiMoCuWN 25.7.4 (EN 1.4501)
ASTM A182 F60 (EN 1.4462)
Other Materials:
Alloy 20 ASTM B462 / UNS N08020
Monel 400 / UNS N04400 ASTM B564-N04400 / A494 M35-1 NiCu30Fe (EN 2.4360)
Nickel Alloy 904L / UNS N08904 X1NiCrMoCu25.20.5 (EN 1.4539)
Inconel 625 / UNS N06625 / ASTM B564-N06625 / ASTM A494-CW6MC
NiCr22Mo9Nb (EN 2.4856)
Inconel 825 / UNS N08825 / ASTM B564-N08825 / ASTM A494 CU5MCuC (EN 2.4858)
NiCr21Mo (EN 2.4858)
