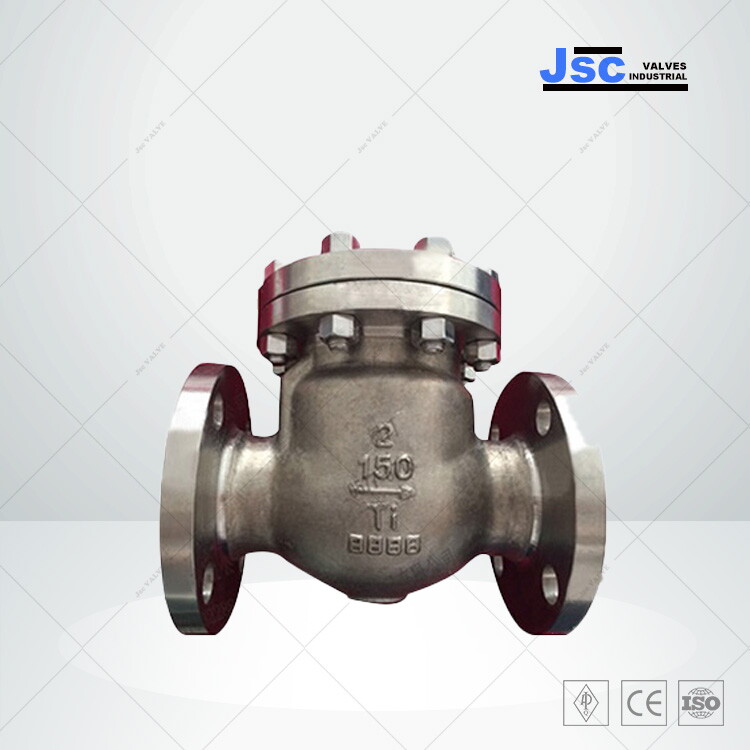

Titanium Alloy TA2 Swing Check Valve, API 6D, 2 Inch, 150 LB
Key Specifications / Features
Model No.: JSC-240228-SCV-01 Hits: 2
Explore our titanium swing check valves, crafted from TA2 titanium alloy for exceptional corrosion resistance. These valves, meeting API 6D standards, offer reliability in industrial applications. Sized at 2 inches and rated for 150 LB class, they ensure tight shut-off and enduring performance with a bolted bonnet design, integral seat, stellite face, and RF ends.
Request a quote
Tags:
Detail Information
Titanium Swing Check Valve
Valve description: Swing check valve, bolted bonnet, integral seat, stellite face, titanium
Body material: Titanium Alloy TA2
Nominal diameter: 2 Inch (DN50)
Nominal class: Class 150 LB (PN20)
End connection: RF
Metal seat: STL
Design and Manufacture: API 6D
Face to face: ASME B16.10
Test and inspection: API 598
The TA2 Titanium check valve is made of titanium material, including internal seals for the check valve. TA1, TA2, and TA10 Titanium check valves use corrosion-resistant and oxidation-resistant materials, making them very strong. These check valves can improve corrosion resistance and oxidation ability to adapt to the complex working conditions, ensuring longer-lasting operation. Titanium check valves work in humid atmospheres and sea water mediums, showing good performance, especially strong resistance to pitting corrosion, acid corrosion, and stress corrosion. TA1, TA2, and TA10 Titanium check valves exhibit excellent corrosion resistance to alkali, chloride, chlorine organic articles, nitric acid, etc.
Swing check valve prevents potentially damaging backflows to protect equipment like as pumps and compressors. The Non-return valves allow the flow of the fluid in one direction only and block reverse flows. It has the simplest design and operates via a metallic disc attached to a hinge at the top. When the fluid passes through the swing check valve, then the valve is open. When a reverse flow occurs, the changes in motion as well as gravity help to close the disc, closing the valve and preventing backflows.
Titanium Swing Check Valve - Standard
Welding seat rings or Renewable seat rings
Design and Manufacture: API 6D, BS 1868 or ASME B16.34
Inspection and Test: API 598
End flange dimension: ASME B16.5, ASME B16.47 (API 605 ,MSS SP 44)
BW end dimension: ASME B16.25
Face to face, end to end: ASME B16.10
Pressure-temperature ratings: ASME B16.34
NACE: NACE 0175
Size Range: 2 Inch – 36 Inch
Pressure Range: ASME Class 150 - 2500 LB
Optional materials: ASTM A216 WCB, WCC, ASTM A217 WC1, WC6, WC9, ASTM A351 CF8, A351 CF8M, A351 CF3, A351 CF3M, A351 CN7M, ASTM A352 LC1, LCB, LCC, LC3, Hastelloy C276, Monel, Titanium and Alloy 20 (Cast Steel, Alloy Steel, Stainless Steel, Special Steel)
Swing Check Valve - Standard Material
| Parts Name | Carbon Steel to ASTM | Alloy Steel to ASTM | Stainless Steel to ASTM | ||||||||
| 1. | Body | A216 WCB | A352 LCB | A217 WC1 | A217 WC6 | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| 9 | Cover | A216 WCB | A352 LCB | A217 WC1 | A217 WC6 | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| 2. | Disc | A216 WCB | A352 LCB | A217 WC1 | A217 WC6 | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| 3. | Hinge | A216 WCB | A352 LCB | A217 WC1 | A217 WC6 | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| 7 | Bolt | A193 B7 | A320 L7 | A193 B7 | A193 B16 | A193 B16 | A193 B16 | A 193 B8 | A 193 B8 | A 193 B8 | A 193 B8 |
| 6. | Nut | A194 2H | A194 4 | A194 2H | A194 4 | A194 4 | A194 4 | A194 8 | A194 8 | A194 8 | A194 8 |
| 4. | Disc Nut | A194 2H | 410 | 410 | 410 | 410 | 410 | 304 | 316 | 304L | 316L |
| 8. | Gasket | SS Spiral Wound with graphite, or SS Spiral Wound PTFE, Reinforced PTFE | |||||||||
| 7. | Yoke | A216 WCB | A352 LCB | A217 WC1 | A217 WC6 | A217 WC9 | A217 C5 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
