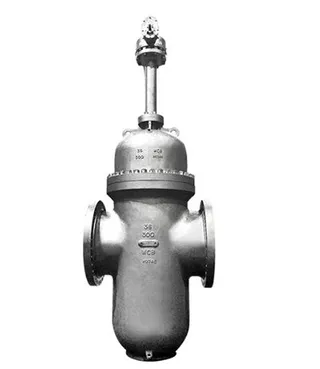

High-Pressure Slab Gate Valve Design for Extreme Conditions

High-pressure slab gate valves are specialized valve systems designed for high-pressure, low-temperature, and high-sulfur environments. These valves are widely used in the transportation of natural gas, oil, water, and other corrosive media. Featuring innovative structural design, carefully selected materials, and excellent sealing, these gate valves offer exceptional corrosion and wear resistance, ensuring reliability and safety even under extreme conditions. This article provides an overview of material selection, structural characteristics, sulfur corrosion resistance, and specific applications of high-pressure slab gate valves in high-pressure environments.

Material Selection

Material selection is a critical factor in ensuring the reliability of high-pressure slab gate valves in extreme conditions. Different media, temperatures, and pressure levels call for specific materials to withstand low temperatures, high pressure, and corrosive environments. For typical uses like low-temperature natural gas and high-sulfur natural gas transport, the main components are carefully chosen to provide excellent mechanical strength, corrosion resistance, and sealing for stable, long-term performance.

1. Low-Temperature Natural Gas Transport

For low-temperature natural gas transport, the material choice focuses on maintaining strength and sealing at low temperatures.

Valve Body and Bonnet: Commonly made from ASTM A217 LCC or ASTM A350 LF2, these materials retain toughness and mechanical properties at low temperatures.
Stem: Constructed from ASTM A182 F304 stainless steel for excellent corrosion resistance and strength.
Gate: Uses A350 LF2 or A182 F304, providing stability under high pressure.
Seat: Metal seats typically use A350 LF2, treated with ion nitriding, or F304 with a cobalt-based hard alloy overlay for enhanced wear and corrosion resistance. Soft seats use PTFE with an Inconel X750 backing to improve impact resistance.

2. High-Sulfur Natural Gas Transport

For high-sulfur environments, sulfur-resistant steel is selected, requiring strict smelting and casting processes to resist sulfur and chloride corrosion.

Valve Body and Bonnet: Made from high-quality, sulfur-resistant steel with low carbon, ultra-low sulfur, and low phosphorus to ensure fine grain structure and clean metallurgical quality.
Smelting Process: Uses electric arc furnace smelting, deoxidized with Si-Ca alloy, and further refined with Al or Ti to reduce impurities.
Heat Treatment: Normalizing followed by high-temperature tempering achieves a uniform tempered sorbite structure with hardness controlled below 200 HB, enhancing sulfur and chloride resistance.
Sulfur Corrosion Testing: SSC and HIC tests are conducted to prevent hydrogen embrittlement and stress corrosion cracking, ensuring the valve's durability in high-sulfur environments.

Structural Characteristics

The structural design of high-pressure slab gate valves is optimized for the safe transport of high-pressure, low-temperature, and corrosive media, featuring the following key aspects.

1. Balanced Floating Seal Structure

These valves use a balanced floating seal structure, suitable for pressures up to 40 MPa and temperatures up to 120°C. This seal adjusts automatically with pressure, enabling smooth operation. The high hardness and corrosion resistance of the seal material ensure reliable sealing performance.

2. Wear and Corrosion Resistant Sealing Surfaces

All sealing surfaces are coated with hard alloy, greatly enhancing wear and corrosion resistance. Cobalt-based hard alloy overlays on the sealing surfaces provide extra durability, making them well-suited for harsh conditions. Strict heat treatment processes ensure stability over long periods.

Application Scenarios and Performance Advantages

High-pressure slab gate valves, known for their pressure tolerance, corrosion resistance, and reliable sealing, find extensive use in various demanding industrial environments. Their unique design allows excellent performance in high-pressure pipelines, power plant equipment, and sulfur/chloride-resistant applications.

1. High-Pressure Pipeline Systems

Primarily used in high-pressure pipeline systems, these valves are ideal for fluids like oil and gas at pressures up to 42 MPa and temperatures up to 120°C. With a well-engineered structure and superior sealing, they effectively prevent media leakage. They are commonly employed for controlling and regulating the flow of natural gas, oil, water, and slurry.

2. Power Plant Boilers and Pressure Vessels

High-pressure slab gate valves are also widely used in power plant boiler and pressure vessel systems to prevent system overpressure, thus ensuring equipment safety. When the medium pressure reaches a set value, the valve opens, and excess pressure is released. The valve closes automatically when the pressure returns to normal.

3. Sulfur and Chloride Corrosion Resistance Applications

In environments with high sulfur or chloride content, these valves maintain stable performance due to their excellent sulfur and chloride corrosion resistance. Passing SSC (Sulfur Stress Corrosion Cracking) and HIC (Hydrogen-Induced Cracking) tests verifies their reliability in highly corrosive settings like high-sulfur natural gas and high-chloride environments.

Conclusion

In summary, high-pressure slab gate valves have become indispensable for various high-pressure and corrosive applications, thanks to their superior structural design, high-quality materials, and excellent sealing performance. Whether in low-temperature natural gas transport, sulfur-resistant environments, or high-pressure pipelines and power plants, these valves provide stable and efficient fluid control. With meticulous material selection and strict manufacturing processes, these valves offer long-lasting reliability and safety, serving as robust solutions in natural gas, petrochemical, power, and other industries.
