Design Improvement of Steam Jacketed Ball Valves

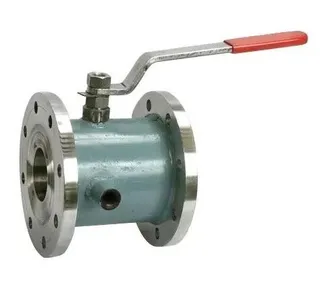

A Steam jacketed ball valve, also known as a jacketed ball valve, is an industrial valve designed specifically for handling high-viscosity, easily solidifying fluids. This valve features an external metal jacket that forms an insulation channel around the valve body, allowing steam or other heating mediums to be injected into the channel. This design keeps the medium inside the valve flowing smoothly by maintaining the necessary temperature, which also minimizes heat loss between the valve and pipeline. Thanks to these features, steam jacketed ball valves are widely used in industries like petroleum, chemicals, pharmaceuticals, food processing, and metallurgy. They are especially useful for transporting mediums prone to solidification at room temperature, such as rosin, heavy oil, and paraffin.

Design Principle and Function of Steam Jacketed Ball Valves

The steam jacketed ball valve is an adaptation of a standard ball valve, enhanced with a metal jacket surrounding the valve body to create a thermal insulation channel. This channel allows heating media, such as steam or hot water, to be distributed around the valve, ensuring stable fluid temperature inside. By keeping the valve passage diameter consistent with the pipeline, this design avoids flow disruptions due to temperature changes and reduces heat loss, contributing to system efficiency.

Limitations of Conventional Steam Jacketed Ball Valves

While steam jacketed ball valves are widely used in industrial settings, traditional designs have temperature limitations, especially in terms of sealing structure and materials. Most conventional valves are limited to operating temperatures below 200°C. At temperatures above 200°C, the seals tend to age more rapidly, shortening valve lifespan. Even when high-strength graphite with short-term heat resistance of up to 300°C is used in the seat, achieving reliable sealing in critical areas, such as radial seals, remains challenging. Traditional O-ring seals, for instance, are limited to 200°C due to the heat tolerance of fluororubber. For applications requiring higher temperatures, these limitations can restrict the valve's suitability.

Improvements to Steam Jacketed Ball Valves

To address the high-temperature limitations of traditional steam jacketed ball valves, enhancements focus on three main aspects: sealing materials, sealing structure, and drain design.

1. Radial Seal Optimization

The conventional O-ring seal is replaced with a high-temperature-resistant flexible graphite structure. A step structure is machined on the support ring, eliminating the O-ring and adding a flexible graphite seal in the seal chamber between the support ring and valve body. A tapered washer is placed behind the seal ring, and tightening a plug creates radial pressure that secures the seal against the support ring and valve body, providing reliable radial sealing at high temperatures.

2. Improvement of Seat Sealing Structure

To increase high-temperature adaptability, grooves are designed on the valve body and support ring, with flexible graphite material added to the base of these grooves. This structure ensures a tight seal at the base of the seat and compensates for thermal expansion or contraction. An additional high-temperature metal seat installed above the flexible graphite allows for prolonged use at temperatures up to 425°C, overcoming the 200°C limit of traditional designs.

3. Enhanced Drain Port Sealing

Improved steam jacketed ball valves feature optimized threaded drain ports. The conventional threaded plug, prone to sealing issues at high temperatures, is replaced with a stepped drain plug. The connection end uses a spiral gasket for sealing, ensuring reliable drainage sealing under high-temperature conditions and enhancing system safety.

Performance Advantages of the Improved Steam Jacketed Ball Valve

The comprehensive improvements to the sealing structure have significantly enhanced the valve's high-temperature sealing performance. By replacing the traditional O-ring with flexible graphite, the steam jacketed ball valve can now be used continuously at temperatures up to 425°C, accommodating a broader range of applications. For example, rosin requires temperatures above 300°C to maintain fluidity. The improved valve ensures the medium remains stable and fluid at these temperatures, preventing flow issues that could reduce operational efficiency.

Prospects for Steam Jacketed Ball Valves

As industrial technology advances and demand for handling high-viscosity, high-temperature mediums increases, the improved steam jacketed ball valve shows great promise across multiple industries. With its compact design, easy operation, reliable sealing, and enhanced durability, it is especially suited for applications that require high-temperature fluidity. Driven by market needs, this innovative valve demonstrates advantages in meeting diverse industry requirements. Its application scope spans petrochemicals, food processing, pharmaceuticals, and metallurgy, making it an ideal choice for high-temperature, high-viscosity medium transport.

Conclusion

In summary, the improved steam jacketed ball valve offers superior high-temperature sealing performance and effective insulation, showcasing significant advantages for handling high-viscosity and easily solidifying mediums. Through optimized design, high-temperature materials, and user-friendly operation, it meets current industrial demands while providing reliable solutions for even more challenging conditions. With advances in material science and manufacturing, steam jacketed ball valves will continue to improve in performance and versatility, bringing innovation and value to industrial fluid control and becoming essential equipment in high-temperature environments.
