Concentric vs. Eccentric Butterfly Valves: Choosing the Right Fit
Butterfly valves are essential components in fluid control systems, offering versatility and efficiency. Two common types of butterfly valves are concentric and eccentric, each designed with unique characteristics to suit specific applications. Let's delve into the differences between concentric and eccentric butterfly valves.
Concentric Butterfly Valves: Symmetrical Solution
Concentric butterfly valves are characterized by their symmetrical design, where the center of the sealing element aligns with the valve body's axis. The valve comprises a circular body and a disc that rotates on the center axis. This design ensures a straightforward and balanced flow control mechanism.
Key Features of Concentric Butterfly Valves
1. Symmetry: The concentric design provides symmetrical operation, simplifying installation and maintenance.
2. Versatility: Concentric valves are suitable for a wide range of applications due to their balanced structure.
3. Sealing Mechanism: The concentric sealing mechanism ensures a reliable and tight shut-off, minimizing the risk of leakage.
Application: Concentric butterfly valves find applications in various industries, including water treatment, HVAC systems, and general fluid control, where a cost-effective and reliable solution is required.
Eccentric Butterfly Valves: Optimizing Performance

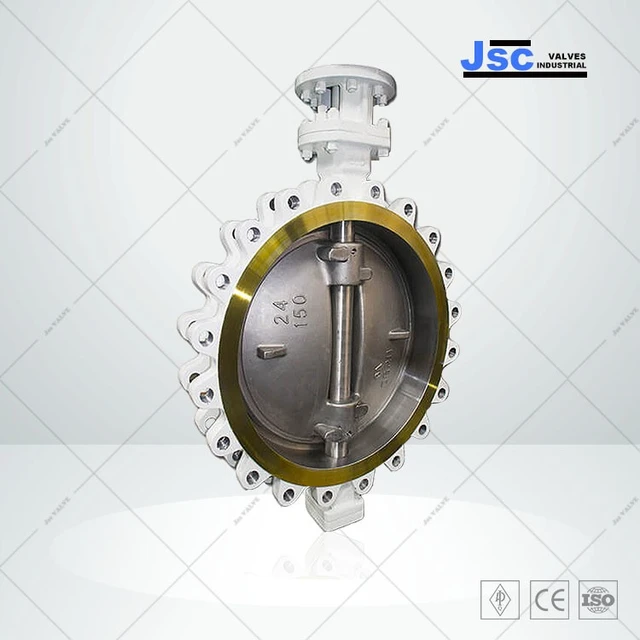

In contrast, eccentric butterfly valves have a distinctive design where the center of the sealing element is offset from the valve body's axis. This offset creates an eccentricity that enhances performance and durability in specific conditions.
Major advantages of Eccentric Butterfly Valves
1. Improved Sealing: The eccentric design provides better sealing performance, reducing wear on the valve seat and extending the valve's lifespan.
2. High-Performance Applications: Eccentric valves are preferred in applications where tight shut-off and minimal seat wear are critical, such as in chemical processing and oil and gas industries.
3. Reduced Friction: The eccentricity minimizes friction between the disc and the seat, enhancing the valve's efficiency and reducing operating torque.
Applications: Eccentric butterfly valves excel in demanding environments, including industries dealing with abrasive or corrosive fluids, thanks to their enhanced sealing capabilities and reduced wear.
Choosing the Right Valve for the Job: Considerations
When selecting between concentric and eccentric butterfly valves, several factors come into play:
Application Requirements: Consider the specific demands of the fluid control application, including pressure, temperature, and the nature of the fluid being handled.
Sealing Performance: Evaluate the required sealing performance, especially if the application demands minimal leakage and extended valve life.
Cost Considerations: Concentric butterfly valves are often more cost-effective, making them suitable for applications where strict sealing requirements are not the primary concern.
Maintenance Ease: Concentric valves are generally easier to install and maintain due to their symmetrical design.
In conclusion, while concentric butterfly valves offer simplicity and cost-effectiveness for a broad range of applications, eccentric butterfly valves shine in environments demanding enhanced sealing performance and durability. Choosing the right valve involves a careful consideration of the specific requirements of the fluid control system, ensuring optimal performance and longevity.
