API 609 Pneumatic Actuated Metal Seated Butterfly Valve
Key Specifications / Features
Model No.: JSC-231124-EBV-108-1 Hits: 12
We manufacture pneumatic actuated metal-seated butterfly valves in China, conforming to API 609 standards. Our valves range from 2 to 128 inches, suitable for DN50-DN3200 applications, and meet Class 150-900 LB specifications. Crafted from high-quality stainless, alloy, and carbon steel, these valves are designed to cater to diverse industrial requirements. Trust us for efficient and reliable solutions tailored to your specifications.
Request a quote
Tags:
Detail Information
API 609 Pneumatic Actuated Metal Seated Butterfly Valve
Its structure adopts the three-dimensional core principle design, and the valve seat adopts the laminate stainless steel with graphite structure. This product is composed of valve body, butterfly disc, laminate seal as valve seat, valve stem, transmission mechanism and other main components. It is widely used in metallurgy, electric power, petroleum, chemical industry, air, gas, combustible gas and water supply and drainage pipeline.
Pneumatic Actuated Metal Seated Butterfly Valve

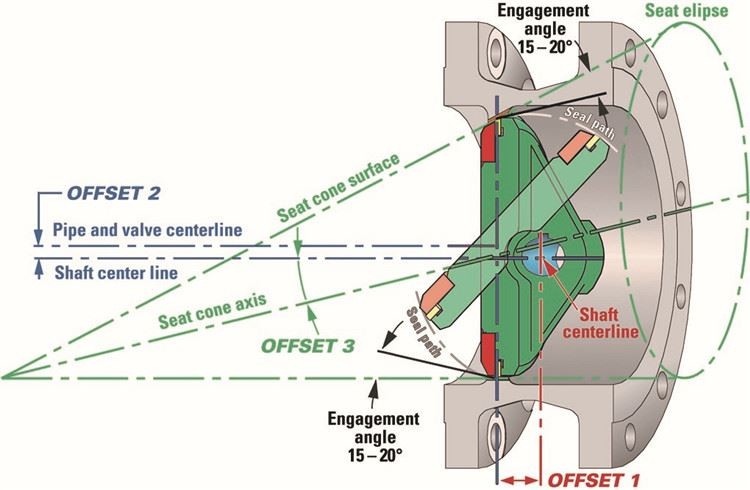

There is triple offset, the first eccentric, the shaft deviated from the centerline of sealing face; The second eccentric, the shaft deviated from the centerline of pipe and valve; The third eccentric the distinctive included angle between oblique taper angle of eccentric seat and centerline of pipe, thus making seat completely disengaged from the sealing ring during the whole process of open and close. This structure not only uses cam effect, but also eliminates the possibility of abrasion and leakage.
1. The hard seal butterfly valve with three eccentric hard seal structure, the valve seat and disc almost no wear, with the more the more tight sealing function.
2. STL one piece hard surface seat may adapt to many working conditions, which is featured by long service life and easy maintenance.
3. One piece cast body, face to face dimensions conforming to ISO 5752, ASME B16.10 and API 609, replacement to high performance butterfly valves and other types of valves, easy and flexible installation.
4. Intrinsical fireproof property thanks to all metal structure and leak tight performance.
5. Anti-blowout stem for high dependability, completely conforming to API 609
6. The stem of triple eccentric butterfly valve is a shaft, and the stem and disc are connected by key or pin-key combination.
Pneumatic Actuated Metal Seated Butterfly Valve-Specifications and Materials
1. Designed: API 609
2. Face to Face: API 609
3. Flange End: ASME B16.5, ASME B16.47,
4. Inspection Test: API 598, BS EN 12266, ISO 528
5. Materials Choose Body Materials: Carbon Steel ASTM A216 WCB, WCC, Low Temperature Carbon Steel ASTM A352 LCB, A352 LCC, A352 LC1, A352 LC2; Alloy Steel Chrome Moly ASTM A217 WC6, A217 C5, A217 WC5, A217 C12, A217 C12A, A217 WC9, 1.7335, 1.7380, 1.7362, 1.7386, 1.4903; STAINLESS STEEL ASTM A351 CF3, A351 CF8, A351 CF3M, A351 CF8M, A351 CF8C, 1.4301, 1.4306, 1.4401, 1.4404, 1.4550, 1.4438; ALLOY 20 ASTM A351 CN7M, N08020, 1.4438; DUPLEX STEEL 2205 ASTM A351 CD3MN, A890 2205, S31803, 1.4462; SUPER DUPLEX STAINLESS STEEL ASTM A351 CD4MCu, A890 5A, S32750, 1.4501; SUPER DUPLEX F55, ASTM A995 CD3MWCuN, S32760
6. Disc Materials: ASTM A216 WCB, WCC, ASTM A352 LCB, ASTM A351 CF8M, CF3M, CF8, CF3, ASTM A890 4A, 5A, ALLOY 20, duplex stainless steel, Monel, hastelloy steel
7. Seat Materials: SS 304+graphite, SS 316+Graphite, PTFE, metal to metal
8. Pressure: PN10, PN16, PN25, PN40, PN63, PN100, 150 LB, 300 LB, 600 LB, 900 LB (PN10-PN100, Class 150-900 LB)
9. Size: DN50-DN3200, 2 Inch - 128 Inch
10. Drive Mode: Manual/Worm gear/Electric/Pneumatic
11. Field of Application: Electric/Hydraulic/Municipal Engineering etc; Water/Sea water/Gas etc.
FAQ:
Q: What is the actuator of this butterfly valve?
A: It is single piston pneumatic actuator.
Q: Are you a trader or manufacturer?
A: We are a manufacturer, including ball valves, gate valves, globe valves, check valves, butterfly valves, safety valves, plug valves, bellows valve, needle valves, knife gate valves etc.
Q: What kind of certification do you have?
A: We have API 6D, API 607 & API 6FA, ISO 9001, CE.
Q: Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings.
Q: What is the payment term?
A: 30% T/T advance payment before the production, 70% balance T/T payment before the shipment or against copy of B/L.
