Non-Rising Stem Gate Valve, 2-40 Inch, Class 150-1500 LB
Key Specifications / Features
Model no.: JSC-231124-CSGAV-55
Hits: 4
Seeking a reliable Parallel Double Disc Gate Valve Maker? Your search ends here. Our valves, crafted in accordance with API 603, ISO 10434, DIN 3357, and BS 1414 standards, feature a Split Wedge design for optimal performance. Available in sizes ranging from 2 to 40 inches, and rated at 150-1500 LB, these valves are constructed from high-quality Alloy, Carbon, or Stainless Steel to meet diverse application needs. Sizes DN50-DN1000 are readily available to cater to your specific requirements.
Request a quote
Tags
Detail Information

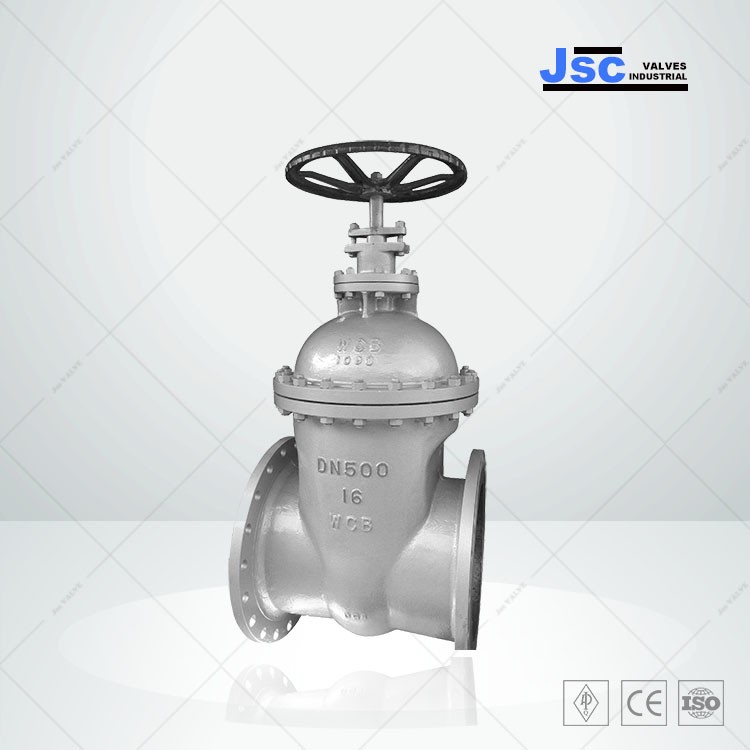

Non-Rising Stem Gate Valve
Non-Rising Stem Gate Valve is kind of gate valve that the stem does not rise when working, but the gate goes up along with the stem. NRS Gate Valve can be divided into three types, Non rising stem flexible wedge gate valve metal seated, Non rising stem solid wedge gate valve metal seated, Non rising stem resilient seated gate valve. This kind gate valve can safe space when installation due the feature of non-rising stem.
We also supply the gate valves as below
Non-Rising Stem Wedge Gate Valve,
NRS Gate Valve,
NRS Resilient Seated Gate Valve
No Rising Stem Solid Wedge Gate Valve
Non Rising Stem Slab Gate Valve
SIZE RANGE AND PRESSURE CLASS
Size from 2 Inch to 40 Inch (DN50-DN1000)
Pressure from 150 LBS to 1500 LBS (PN16-PN240)
DESIGN STANDARDS
Design / Manufacture as per the standards: API 600, ASME B16.34, DIN 3357, GB/T12234, ISO 10434, API 603, BS 1414
Face to Face Length (Dimension) as per the standards: ASME B16.10, EN 558-1 Gr. 14 (DIN 3202-F4), DIN 3202-F5, DIN 3202-F7, BS 5163
Flanged Dimension according to the standards: ASME B16.5, EN 1092-1, BS 4504, DIN 2501,
Flanged to ASME B16.5 (2 - 24 Inch) and ASME B16.47 Series A / B (26 Inch and above) Clamp / Hub ends on request.
Testing according to the standards: API 598, API 6D, EN 12266-1, EN 1074-1, ISO 5208
TECHNICAL FEATURES
Non-Rising Stem can operate in limited space
Compact structure
Easy installation and accessibility
offers positive seal
Resilient seat or metal seat upon request.
Inside Screw
Solid Wedge Disc or Flexible Wedge upon needsqsx
CONSTRUCTION MATERIALS
General Cast Carbon Steel:
ASTM A216 WCB, WCC, WCA, GP240GH 1.0619 / GS-C25
Low Temperature Carbon Steel (LTCS):
ASTM A352 LCB, LCC, LCA, GS-CK25
Alloy Steel:
ASTM A352 LC1, LC2, LC2-1, LC3, LC4, LC9, ASTM A743 CA6NM
GS-CK16, GS-CK24, GS-10Ni6, GS-10ni14
High Temperature Steel (Chrome Moly)/Alloy Steel:
ASTM A217 WC1, WC6, WC9, C5, C12, C12A
GS-22Mo4 / G20Mo5 (EN 1.5419), GS-17CrMo55 / G17CrMo5-5 (EN 1.7357)
Austenitic Stainless Steel/Alloy Steel:
UNS S30400, S30403, S30409, ASTM A351 CF8, CF3, CF10
G-X6CrNi189 / GX5CrNi19-10 (EN 1.4308)
UNS S31600, S31603, S31609, ASTM A351 CF8M, CF3M. CF10M
GX5CrNiMo19-11-2 / G-X6CrNiMo18.10 (EN 1.4408)
UNS S34700, S34709, ASTM A351 CF8C
G-X5CrNiNb189 / GX5CrNiNb19-11 (EN 1.4552)
AISI 316Ti, X6CrNiNo17122 / X6CrNiMoTi17-12-2 (EN 1.4571)
ALLOY 20 / UNS N08020, ASTM A351 CN7M
Ferritic-Austenitic / Duplex / Super Duplex Stainless Steel:
UNS S31803 / S32205 (Duplex 2205), ASTM A890/A995 GR.4A (UNS J92205) / A351 CD3MN
UNS S32750 (Super Duplex 2507), ASTM A890 / A995 GR.5A / A351 CE8MN (CD4MCu)
UNS S32760, ASTM A890 / A995 GR.6A (CD3MWCuN)
Other Materials:
Alloy 20 ASTM B462 / UNS N08020
Monel 400 / UNS N04400 ASTM B564-N04400 / A494 M35-1 NiCu30Fe (EN 2.4360)
Nickel Alloy 904L / UNS N08904 X1NiCrMoCu25.20.5 (EN 1.4539)
Inconel 625 / UNS N06625 / ASTM B564-N06625 / ASTM A494-CW6MC
NiCr22Mo9Nb (EN 2.4856)
Inconel 825 / UNS N08825 / ASTM B564-N08825 / ASTM A494 CU5MCuC (EN 2.4858)
NiCr21Mo (EN 2.4858)
Non-Rising Stem Gate Valve is kind of gate valve that the stem does not rise when working, but the gate goes up along with the stem. NRS Gate Valve can be divided into three types, Non rising stem flexible wedge gate valve metal seated, Non rising stem solid wedge gate valve metal seated, Non rising stem resilient seated gate valve. This kind gate valve can safe space when installation due the feature of non-rising stem.
We also supply the gate valves as below
Non-Rising Stem Wedge Gate Valve,
NRS Gate Valve,
NRS Resilient Seated Gate Valve
No Rising Stem Solid Wedge Gate Valve
Non Rising Stem Slab Gate Valve
SIZE RANGE AND PRESSURE CLASS
Size from 2 Inch to 40 Inch (DN50-DN1000)
Pressure from 150 LBS to 1500 LBS (PN16-PN240)
DESIGN STANDARDS
Design / Manufacture as per the standards: API 600, ASME B16.34, DIN 3357, GB/T12234, ISO 10434, API 603, BS 1414
Face to Face Length (Dimension) as per the standards: ASME B16.10, EN 558-1 Gr. 14 (DIN 3202-F4), DIN 3202-F5, DIN 3202-F7, BS 5163
Flanged Dimension according to the standards: ASME B16.5, EN 1092-1, BS 4504, DIN 2501,
Flanged to ASME B16.5 (2 - 24 Inch) and ASME B16.47 Series A / B (26 Inch and above) Clamp / Hub ends on request.
Testing according to the standards: API 598, API 6D, EN 12266-1, EN 1074-1, ISO 5208
TECHNICAL FEATURES
Non-Rising Stem can operate in limited space
Compact structure
Easy installation and accessibility
offers positive seal
Resilient seat or metal seat upon request.
Inside Screw
Solid Wedge Disc or Flexible Wedge upon needsqsx
CONSTRUCTION MATERIALS
General Cast Carbon Steel:
ASTM A216 WCB, WCC, WCA, GP240GH 1.0619 / GS-C25
Low Temperature Carbon Steel (LTCS):
ASTM A352 LCB, LCC, LCA, GS-CK25
Alloy Steel:
ASTM A352 LC1, LC2, LC2-1, LC3, LC4, LC9, ASTM A743 CA6NM
GS-CK16, GS-CK24, GS-10Ni6, GS-10ni14
High Temperature Steel (Chrome Moly)/Alloy Steel:
ASTM A217 WC1, WC6, WC9, C5, C12, C12A
GS-22Mo4 / G20Mo5 (EN 1.5419), GS-17CrMo55 / G17CrMo5-5 (EN 1.7357)
Austenitic Stainless Steel/Alloy Steel:
UNS S30400, S30403, S30409, ASTM A351 CF8, CF3, CF10
G-X6CrNi189 / GX5CrNi19-10 (EN 1.4308)
UNS S31600, S31603, S31609, ASTM A351 CF8M, CF3M. CF10M
GX5CrNiMo19-11-2 / G-X6CrNiMo18.10 (EN 1.4408)
UNS S34700, S34709, ASTM A351 CF8C
G-X5CrNiNb189 / GX5CrNiNb19-11 (EN 1.4552)
AISI 316Ti, X6CrNiNo17122 / X6CrNiMoTi17-12-2 (EN 1.4571)
ALLOY 20 / UNS N08020, ASTM A351 CN7M
Ferritic-Austenitic / Duplex / Super Duplex Stainless Steel:
UNS S31803 / S32205 (Duplex 2205), ASTM A890/A995 GR.4A (UNS J92205) / A351 CD3MN
UNS S32750 (Super Duplex 2507), ASTM A890 / A995 GR.5A / A351 CE8MN (CD4MCu)
UNS S32760, ASTM A890 / A995 GR.6A (CD3MWCuN)
Other Materials:
Alloy 20 ASTM B462 / UNS N08020
Monel 400 / UNS N04400 ASTM B564-N04400 / A494 M35-1 NiCu30Fe (EN 2.4360)
Nickel Alloy 904L / UNS N08904 X1NiCrMoCu25.20.5 (EN 1.4539)
Inconel 625 / UNS N06625 / ASTM B564-N06625 / ASTM A494-CW6MC
NiCr22Mo9Nb (EN 2.4856)
Inconel 825 / UNS N08825 / ASTM B564-N08825 / ASTM A494 CU5MCuC (EN 2.4858)
NiCr21Mo (EN 2.4858)
