Exploring the Excellence of Soft Seal Plug Valves

Soft seal plug valves are a type of Plug Valve leading the way in transforming fluid control with distinctive design elements that excel in the valve body, plug, stem sealing, and internal leakage sealing concerning this Plug Valve. Let's delve into these features of  the Soft seal plug valve with a closer look:

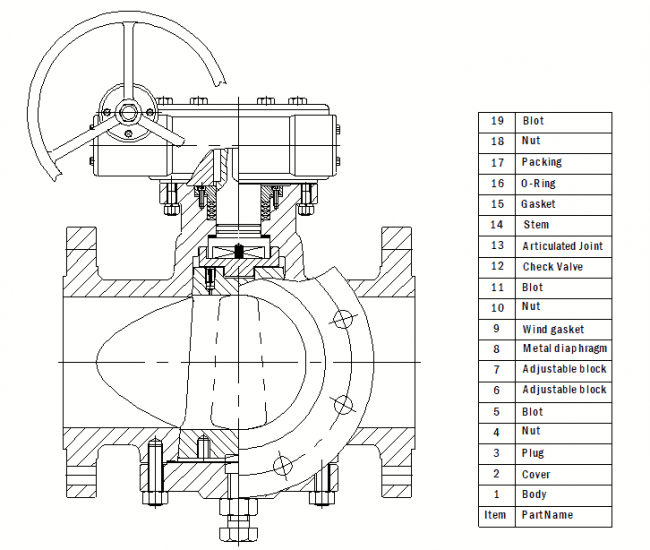

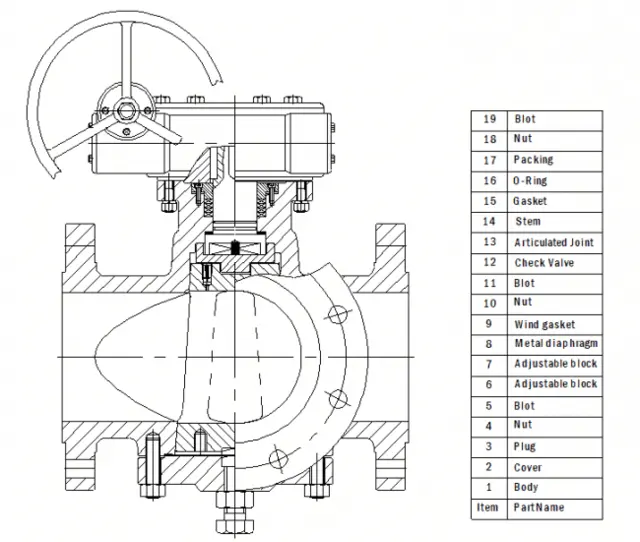

Plug Valves Design

1. Upgraded Valve Body Design: To enhance durability, the valve body has undergone a comprehensive redesign. Strategic reinforcements at the flange-to-body connection and the valve body's base have significantly prolonged the valve's lifespan.
2. Superior Plug Design: The core plug features a unique 2-degree design, nearly twice the size of comparable products, maximizing the sealing surface area. This innovation not only extends the valve's lifespan but also improves flow capacity.
3. Innovative Stem Sealing
The soft-sealed plug valve employs groundbreaking stem sealing technology, ensuring optimal performance and reliability in fluid control.
360-Degree Contact Seal: The upper part of the plug seat creates a substantial 360-degree contact area with the PTFE sleeve, forming the primary seal.
Unique PFA Sealing Membrane: A second seal incorporates a uniquely designed PFA sealing membrane, ensuring robust dynamic and static sealing, even under high pressure.
Material Advantages: Opting for PFA instead of the common PTFE provides superior elasticity, outstanding wear resistance, stronger permeation resistance, and features like memory, resistance to creep, and absence of cold flow.
4. Outstanding Internal Leakage Sealing
The internal leakage sealing mechanism in soft-sealed plug valves stands out as a pinnacle of reliability, ensuring impeccable fluid control.
Tightly Matched Conical Seal: The tightly matched conical plug, coupled with the PTFE sleeve, forms a secure seal.
Bidirectional Sealing: The sleeve encircles the plug seat, ensuring a tight connection of the upper and lower portions, eliminating voids and achieving bidirectional sealing.
Independent Sealing: Sealing operates independently of pipeline pressure, ensuring excellent sealing effectiveness.
Smooth Operation: Valve operation is smooth, requiring no lubrication, and real-time sealing adjustments can be made without dismantling the valve during maintenance.
The unique design features of soft-sealed plug valves, strategically implemented across various components, showcase unparalleled advantages. From enhanced durability to increased sealing effectiveness and intelligent adjustment systems, these valves stand as a reliable choice for fluid control. The innovations promise an extended lifespan and reduced maintenance costs, positioning soft-sealed plug valves at the forefront of advanced fluid control solutions.
