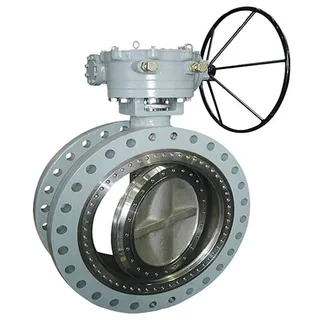

Analysis of Triple Eccentric Metal Seated Butterfly Valve

The triple eccentric metal seated butterfly valve plays a crucial role in fluid control due to its unique design and performance. However, despite its many advantages, there are also some issues in practical applications. This article provides a comprehensive analysis of the structural features and problems of triple eccentric metal seated butterfly valve.
Structural Features
The triple eccentric metal seated butterfly valve features the following characteristics.
  1. Unique Triple Eccentric Design: This design allows for frictionless transmission between sealing surfaces, significantly extending the valve's lifespan.
  2. Elastic Seal Generated by Torque: This design enhances the valve's sealing performance, making it more suitable for high-pressure environments.
  3. Automatic Sealing Achieved by Wedge Design: The valve tightens as it closes, with sealing surfaces compensating directly for each other, achieving zero leakage.
  4. Multiple Drive Modes Available: Various drive options such as mechanical and electric actuators can be selected according to customer requirements, enhancing the valve's versatility.
  5. Material Interchangeability: By simply changing component materials, the valve can adapt to different media and achieve corrosion resistance by lining with materials such as F46, GXPP, or PO.
  6. Optimized Seal Ring Material: Stainless steel seal rings combine the advantages of metal hard sealing and elastic sealing, suitable for various temperature and media conditions.
Analysis of Existing Issues
  • Susceptibility to Damage of Soft-Hard Composite Seal Rings: Soft-hard composite seal rings on the butterfly valve's disc are prone to damage from prolonged exposure to flowing fluids, reducing sealing performance. Strengthening the corrosion resistance of seal materials is necessary.
  • Increased Flow Resistance due to Overall Weight: The valve's overall weight, resulting from its thick construction, leads to increased flow resistance, making it unsuitable for valves with diameters smaller than DN200. Lightweight design solutions are required.
  • Potential Leakage under Reverse Flow Conditions: Sealing between the disc's sealing surface and the valve seat relies on the torque from the transmission device. Under reverse flow conditions, fluid pressure may cause sealing leakage, necessitating the development of a more reliable sealing structure.
Proposed Solutions
Optimization of Seal Materials: Develop seal materials with improved corrosion resistance to prolong seal ring lifespan.
Lightweight Design: Utilize lightweight materials to reduce the overall weight of the valve, thus lowering flow resistance.
Improvement of Sealing Structure: Design a bidirectional sealing structure to enhance the valve's reverse flow sealing performance and improve reliability.
In conclusion, the triple eccentric metal seated butterfly valve plays a vital role in engineering pipeline systems due to its unique design and functionality. Despite some issues, continuous optimization of design and materials can enhance its performance and reliability, better meeting the requirements of engineering applications.
