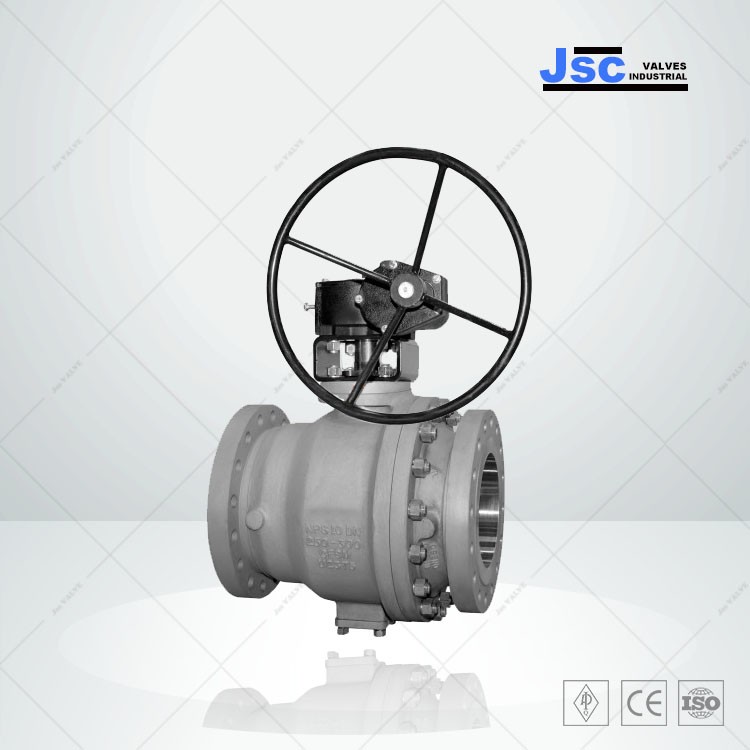

Bidirectional Metal Seated Ball Valve, 2-36 IN, 150-1500 LB
Key Specifications / Features
Model No.: JSC-231117-MSBV-32 Hits: 1
Discover precision and versatility with our Bidirectional Metal Seated Ball Valve production. Engineered to meet the highest industry standards—API 6D, ASME B16.34, and ISO 14313—our valves are available in sizes ranging from 2 to 36 inches, with Class ratings spanning 150 to 1500 LB. Whether you prefer the Floating or Trunnion Type, our valves, crafted from both Forged and Cast Steel, offer reliable performance for a diverse range of industrial applications.
Request a quote
Tags:
Detail Information
Bidirectional Ball Valve
Bidirectional Metal Seated Ball Valve means that the valve can work by two sides, which includes Bidirectional Metal Seated Floating Ball Valve and Bidirectional Metal Seated Trunnion Ball Valve.
We design and manufacture the valves below
Bidirectional Metal Seated Ball Valve.
SIZE RANGE AND PRESSURE CLASS
Size from 2 Inch to 36 Inch (DN50-DN900)
Pressure from 150 LBS to 1500 LBS (PN16-PN240)
DESIGN STANDARDS
Design / Manufacture as per the standards: API 6D, ASME B16.34, DIN 3357, EN 13709, GB/T 12237, BS 5351, ISO 14313
Face to Face Length (Dimension) as per the standards: API 6D, ASME B16.10, EN 558-1 DIN3202, JIS B2002, MFG
Flanged Dimension according to the standards: ASME B16.5, EN 1092-1, BS 4504, DIN 2501,
Flanged to ASME B16.5 (2 - 24 Inch) and ASME B16.47 Series A / B (26 Inch and above) Clamp / Hub ends on request.
Testing according to the standards: API 598, API 6D, EN 12266-1, EN 1074-1, ISO 5208
TECHNICAL FEATURES
Floating or Trunnion mounted as per option
Forged Steel or Cast Steel available
Reduced bore or full bore
Bi-directional metal seat design
Standard splined stem connection (6 Inch and larger)
Standard graphite stem packing design
Trunnion mounted ball valve design for high pressure applications
blowout proof stem design
Fire-safe design in accordance with API 6FA
ISO 5211 mounting design
CONSTRUCTION MATERIALS
General Cast Carbon Steel:
ASTM A216 WCB, WCC, WCA, GP240GH 1.0619 / GS-C25
ASTM A105, C22.8/ P250GH (1.0460/1.0432)
Low Temperature Carbon Steel (LTCS):
ASTM A352 LCB, LCC, LCA, GS-CK25
ASTM A350 LF2, TStE 355 / P355QH1 (EN 1.0571/1.0566)
Alloy Steel:
ASTM A352 LC1, LC2, LC2-1, LC3, LC4, LC9, ASTM A743 CA6NM
GS-CK16, GS-CK24, GS-10Ni6, GS-10ni14
ASTM A350 LF1, LF3, LF5, LF6, LF9, LF787
High Temperature Steel (Chrome Moly) / Alloy Steel:
ASTM A217 WC1, WC6, WC9, C5, C12, C12A
GS-22Mo4 / G20Mo5 (EN 1.5419), GS-17CrMo55 / G17CrMo5-5 (EN 1.7357)
ASTM A182 F1, 15Mo3 16Mo3 (EN 1.5415)
ASTM A182 F11, 13 CrMo 4 4 / 13CrMo4-5 (EN 1.7335)
ASTM A182 F22, 10CrMo 9 10 / 11CrMo9-10 (EN 1.7383/1.7380)
ASTM A182 F91, X10CrMoVNb9-1 (EN 1.4903)
Austenitic Stainless Steel / Alloy Steel:
UNS S30400, S30403, S30409, ASTM A351 CF8, CF3, CF10
G-X6CrNi189 / GX5CrNi19-10 (EN 1.4308)
UNS S31600, S31603, S31609, ASTM A351 CF8M, CF3M. CF10M
GX5CrNiMo19-11-2 / G-X6CrNiMo18.10 (EN 1.4408)
UNS S34700, S34709, ASTM A351 CF8C
G-X5CrNiNb189 / GX5CrNiNb19-11 (EN 1.4552)
AISI 316Ti, X6CrNiNo17122 / X6CrNiMoTi17-12-2 (EN 1.4571)
ALLOY 20 / UNS N08020, ASTM A351 CN7M
ASTM A182 F304 X5CrNi1810 / X5CrNi18-10 (EN 1.4301)
ASTM A182 F304L X2 CrNi 19 11 (EN 1.4306)
ASTM A182 F316 X5CrNiMo 17 12 2 / X5CrNiMo17-12-2 (EN 1.4401)
ASTM A182 F316L X2 CrNiMo 17 13 2 / X2CrNiMo17-12-2 (EN 1.4404）
ASTM A182 F316 Ti X6 CrNiMoTi 17 12 2 / X6CrNiMoTi17-12-2 (EN 1.4571)
ASTM A182 F321 X6 CrNiTi 18 10 / X6CrNiTi18-10 (EN 1.4541)
ASTM A182 F347 X6CrNiNb1810 / X6CrNiTi18-10C (EN 1.4550)
ASTM A182 F44 (6MO) (EN 1.4547)
ASTM A182 F20 * (ALLOY 20)
Ferritic-Austenitic / Duplex / Super Duplex Stainless Steel:
UNS S31803 / S32205 (Duplex 2205), ASTM A890/A995 GR.4A (UNS J92205) / A351 CD3MN
UNS S32750 (Super Duplex 2507), ASTM A890 / A995 GR.5A / A351 CE8MN (CD4MCu)
UNS S32760, ASTM A890 / A995 GR.6A (CD3MWCuN)
ASTM A182 F51, X2 CrNiMoN 22 5 3 / X2CrNiMoN22-5-3 (EN 1.4462)
ASTM A182 F52 (EN 1.4460)
ASTM A182 F53, X2CrNiMoCuN 25.6.3 (EN 1.4410)
ASTM A182 F55, X2CrNiMoCuWN 25.7.4 (EN 1.4501)
ASTM A182 F60 (EN 1.4462)
Other Materials:
Alloy 20 ASTM B462 / UNS N08020
Monel 400 / UNS N04400 ASTM B564-N04400 / A494 M35-1 NiCu30Fe (EN 2.4360)
Nickel Alloy 904L / UNS N08904 X1NiCrMoCu25.20.5 (EN 1.4539)
Inconel 625 / UNS N06625 / ASTM B564-N06625 / ASTM A494-CW6MC
NiCr22Mo9Nb (EN 2.4856)
Inconel 825 / UNS N08825 / ASTM B564-N08825 / ASTM A494 CU5MCuC (EN 2.4858)
NiCr21Mo (EN 2.4858)
