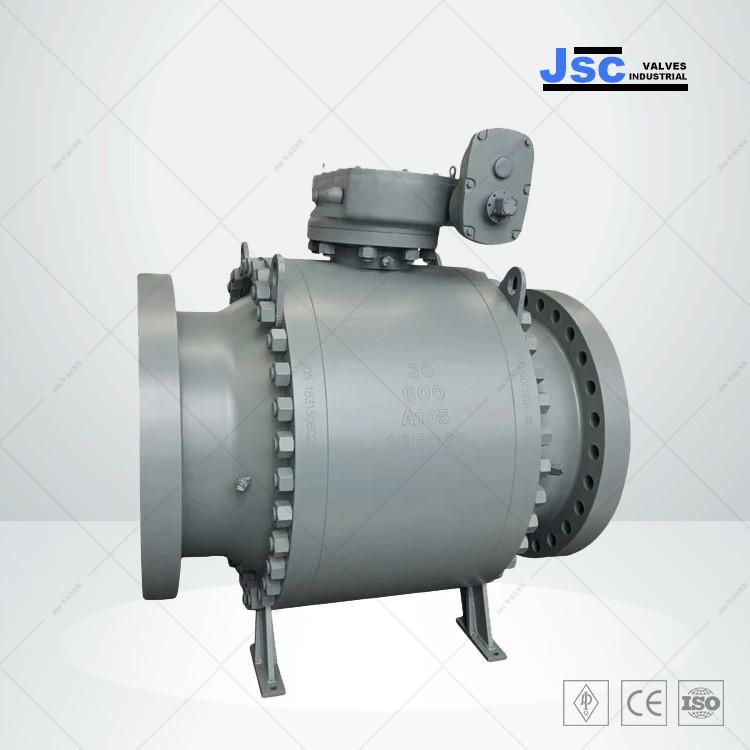

ASTM A105 Three Piece Ball Valve, Metal Seat, 14 IN, 600 LB
Key Specifications / Features
Model no.: JSC-240102-TMBV-06
Hits: 3
Introducing our ASTM A105 Three-Piece Trunnion Ball Valve, proudly manufactured in our factory in China. This high-quality valve adheres to API 6D standards and is crafted from Forged Carbon Steel (ASTM A105). With a substantial size of 14 inches and a Class 600 LB rating, this three-piece valve is designed for durability. The metal-seated design and bolted bonnet ensure secure sealing, and the gear operation provides precise control. Trust our factory's commitment to quality for your ASTM A105 Three-Piece Trunnion Ball Valve needs.
Request a quote
Tags
Detail Information
Metal Seated Trunnion Ball Valve
Valve Description
Ball valve, Metal seat, trunnion type, bolted bonnet, three pieces, forged carbon steel.
Body material: ASTM A105
Nominal diameter: 14 Inch
Nominal class: Class 600 LB
End connection: RF
Metal seat: Chromium Carbide, Tungsten Carbide or Stellite
Design / Manufacture: API 6D
Face to face: ASME B16.10
Mode of operation: Gear operation
Test and inspection: API 598
Metal Seated Ball Valve is manufactured for high temperature up to 540℃ (may be higher based on the material of body and trim) or abrasion resistance. Our Metal Seated Ball Valves are Zero leakage (bubble tight seal). Metal Seated Ball Valve is also called metal to metal ball valve, as the seat and ball are made from metal.
For metal seated ball valve, the seat ring and ball are precisely machined, coated by high velocity oxygen fuel (HVOF) coating process and lapped to match ball, creating a positive seal for bubble-tight performance. Our Metal seated trunnion ball valves have many advantages such as excellent corrosion & wear resistance, tight shut-off, smooth control, low torque, wide temperature & pressure range, as well as stability under pressure. Metal seated ball valve provide long service life with outstanding fugitive emissions performance and low operating torques in even the toughest applications.
Zero Leak Metal Seated Ball Valve
The sealing between the seat and body is O-ring. It is designed for temperature below 150˚C and zero leakage warranty. This design is mainly for gas compression project.
Leakage Rate
Zero leakage available (MUCH higher level than ANSI/FCI 70-2 Class V shut-off, Class VI).
Types: Metal seated trunnion ball valves and metal seated floating ball valves.
Metal Seated Trunnion Mounted Ball Valves are split-body. Trunnion mounted ball valve are with spring-loaded seats with cavity relief; they are double block-and-bleed capability.
Metal seated floating ball valve is with Zero leakage for high temperature operating conditions. Furthermore, seats with hard surface materials in Chromium Carbide, Tungsten Carbide or Stellite are also available. All floating ball valve are Antistatic Design and Automatic Body Cavity Relief.
Metal seated floating ball valve series includes a specific model for highly abrasive catalyst services or with the presence of solids, called SAT3.
Features & Benefits
a) Unique, the metal seated ball valve with patented single-seat ball valve design. It has a flat spring set acting through a hard-faced bearing against the bottom ball shaft which provides sufficient initial ball-seat load for valve tightness, even at low delta P.
b) Metal seated ball valve proven in qualification tests and field operation to be solids–proof, even for the toughest applications on slurry service with solids particles.
c) Tightness rates: Allowable leakage rate at full Delta P: ASME/ FCI 70-2 Class VI/V. Tighter shutoff available upon request.
The leakage rate also can be customization from end-user request
d) The metal seated ball valve with standard extension bonnet/stem, whose design base on the different temperature range.
e) Uni-directional or bi-directional sealing
To ensure product reliability, our ball valve designs are validated by actual prototype testing that includes a high cycle testing. The valves are produced by employing state-of-the-art manufacturing technology and under strict quality control standards.
Product Specification
Size Range: 2 Inch - 36 Inch (DN50-DN900)
Pressure Range: Class 150 LB - 1500LB (PN16-PN250)
Design / Manufacture: API 6D, ASME B16.34, DIN 3357, EN 13709, GB/T 12237, BS 5351, ISO 14313
Face to Face Length (Dimension): MFG, API 6D, ASME B16.10, EN 558-1, DIN 3202, JIS B 2002
Flanged Dimension: ASME B16.5, EN 1092-1, BS 4504, DIN 2501
Flanged to ASME B16.5 (2 Inch-24 Inch) and ASME B16.47 Series A / B (26 Inch and above) Clamp / Hub ends on request.
Testing: API 598, API 6D, EN 12266-1, EN 1074-1, ISO 5208
TECHNICAL FEATURES
Bi-directional metal seat design
Standard SPE (Single Piston Effect) metal seat design with self-relieving features
DPE (Double Piston Effect) metal seat design is available*
Metal seat hard face coatings are available in Stellite, Tungsten Carbide or Chrome Carbide, Spray Ni60 Ni55Options,
Standard metal seat leakage rating is in compliance with ANSI/FCI-70-2 Class V for Stellite seats. Class VI is standard for Tungsten Carbide and Chrome Carbide coated seats.
Standard splined stem connection (6" and larger)
Standard graphite stem packing design
Trunnion mounted ball valve design for high pressure applications
Anti-blowout stem design
Anti-static design
Fire-safe design in accordance with API 6FA
ISO 5211 mounting design
Optional drain plug and body purge device available
CONSTRUCTION MATERIALS
General Cast Carbon Steel:
ASTM A216 WCB, WCC, WCA, GP240GH (1.0619 / GS-C25)
ASTM A105, C22.8/P250GH (1.0460/1.0432)
Low Temperature Carbon Steel (LTCS):
ASTM A352 LCB, LCC, LCA, GS-CK25
ASTM A350 LF2, TSTE 355 / P355QH1 (1.0571/1.0566)
Alloy Steel:
ASTM A352 LC1, LC2, LC2-1, LC3, LC4, LC9, ASTM A743 CA6NM,
GS-CK16, GS-CK24, GS-10Ni6, GS-10Ni14
ASTM A350 LF1, LF3, LF5, LF6, LF9, LF787
High Temperature Steel (Chrome Moly) /Alloy Steel:
ASTM A217 WC1, WC6, WC9, C5, C12, C12A
GS-22Mo4/ G20Mo5 (1.5419), GS-17 CrMo5-5/ G17 CrMo5-5 (1.7357)
ASTM A182 F1, 15Mo3 / 16Mo3 (1.5415)
ASTM A182 F11, 13 CrMo4-4 / 13CrMo4-5 (1.7335)
ASTM A182 F22, 10CrMo9-10 / 11CrMo9-10 (1.7383/1.7380)
ASTM A182 F91, X10CrMoVNb9-1 (1.4903)
Austenitic Stainless Steel/Alloy Steel:
UNS S30400 (S30403) (S30409), ASTM A351 CF8, CF3, CF10
G-X6CrNi189/ GX5CrNi19-10 (1.4308)
UNS S31600 (S31603) (S31609), ASTM A351 CF8M, CF3M, CF10M
GX5CrNiMo19-11-2/G-X6CrNiMo18.10 (1.4408)
UNS S34700 (S34709), ASTM A351 CF8C
G-X5CrNiNb189/GX5CrNiNb19-11 (1.4552)
AISI 316Ti, X6CrNiNo17122/ X6CrNiMoTi17-12-2 (1.4571)
ALLOY 20 / UNS N08020, ASTM A351 CN7M
ASTM A182 F304 X5CrNi1810 / X5CrNi18-10 (1.4301)
ASTM A182 F304L X2CrNi19-11 (1.4306)
ASTM A182 F316 X5 CrNiMo 17 12 2 / X5CrNiMo17-12-2 (1.4401)
ASTM A182 F316L X2 CrNiMo 17 13 2 / X2CrNiMo17-12-2 (1.4404)
ASTM A182 F316Ti X6 CrNiMoTi 17 12 2 / X6CrNiMoTi17-12-2 (1.4571)
ASTM A182 F321 X6 CrNiTi 18 10 / X6CrNiTi18-10 (1.4541)
ASTM A182 F347 X6CrNiNb18-10 / X6CrNiTi18-10C (1.4550)
ASTM A182 F44 (6MO) (1.4547)
ASTM A182 F20 (ALLOY 20)
Ferritic-Austenitic / Duplex / Super Duplex Stainless Steel:
UNS S31803 /S32205 (Duplex 2205), ASTM A890/A995 GR.4A (J92205)/ ASTM A351 CD3MN
UNS S32750 (Super Duplex 2507), ASTM A890/A995 GR.5A / ASTM A351 CE8MN (CD4MCu)
UNS S32760, ASTM A890/A995 GR.6A (CD3MWCuN)
ASTM A182 F51, X2 CrNiMoN 22 5 3 / X2CrNiMoN22-5-3 (1.4462)
ASTM A182 F52, (1.4460)
ASTM A182 F53, X2CrNiMoCuN 25.6.3 (1.4410)
ASTM A182 F55, X2CrNiMoCuWN 25.7.4 (1.4501)
ASTM A182 F60, (1.4462)
Other Materials:
Alloy 20, ASTM B462 / UNS N08020
Monel 400 / UNS N04400 / ASTM B564-N04400) / ASTM A494 M35-1, NiCu30Fe (2.4360)
Nickel Alloy 904L / UNS N08904, X1NiCrMoCu25.20.5 (1.4539)
Inconel 625 / UNS N06625 / ASTM B564-N06625 / ASTM A494-CW6MC, NiCr22Mo9Nb (2.4856)
Inconel 825 / UNS N08825 / ASTM B564-N08825 / ASTM A494 CU5MCuC (2.4858), NiCr21Mo (2.4858)
