Threaded Forged Globe Valve, API 602, 1/2-3 IN, 150-4500 LB
Key Specifications / Features
Model No.: JSC-231124-FSGV-76 Hits: 1
We are a dedicated fabricator of threaded forged globe valves, utilizing materials such as ASTM A105, ASTM A350 LF2, and A182 F9. Our valves conform to API 602 and DIN 3352 standards, covering a comprehensive range from 1/2 to 3 inches (DN15 to DN80) and accommodating Class 150-4500 LB, PN20-PN760 specifications. Designed with SW ends, our threaded forged globe valves are crafted for reliable performance across various applications.
Request a quote
Tags:
Detail Information
Threaded Forged Globe Valve
There are three cover designs for Forged Steel globe valves. The first one is a bolted bonnet, The valve body and valve bonnet are connected by bolts and nuts, and the spiral wound gasket (made of 316 clip flexible graphite) is sealed. Metal ring connection can also be used when customers have special requirements. The second design form of forged steel globe valve is welded bonnet. According to this design form of valve, the valve body and valve bonnet are connected by thread and sealed by full welding. Full penetration connection can also be used when customers have special requirements. The third type is the pressure seal bonnet. According to this design form, the valve body and valve bonnet are connected by thread and sealed by internal pressure self sealing ring.
Threaded Forged Globe Valve Design structure and features
Applicable Standard
Design Standard: API 602, ASME B16.34, BS 5352, DIN 3352
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN 2533
Butt welding Ends: ASME B16.25, DIN 3239
Socket Welded Ends: ASME B16.11
Threaded Ends: ASME B1.20.1
Inspection and Test: API 598, DIN 3202
Products Range
Size: 1/2 Inch - 3 Inch (DN15-DN80)
Rating: ANSI Class 150 - 4500 LB
Body Materials: ASTM A105, ASTM A350 LF2, ASTM A182 F9, F11, F22, F304, F304L, F316, F316L, F321, F51, Alloy Steel, etc.
There are three cover designs for Forged Steel globe valves. The first one is a bolted bonnet, The valve body and valve bonnet are connected by bolts and nuts, and the spiral wound gasket (made of 316 clip flexible graphite) is sealed. Metal ring connection can also be used when customers have special requirements. The second design form of forged steel globe valve is welded bonnet. According to this design form of valve, the valve body and valve bonnet are connected by thread and sealed by full welding. Full penetration connection can also be used when customers have special requirements. The third type is the pressure seal bonnet. According to this design form, the valve body and valve bonnet are connected by thread and sealed by internal pressure self sealing ring.
Threaded Forged Globe Valve Design structure and features
Applicable Standard
Design Standard: API 602, ASME B16.34, BS 5352, DIN 3352
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN 2533
Butt welding Ends: ASME B16.25, DIN 3239
Socket Welded Ends: ASME B16.11
Threaded Ends: ASME B1.20.1
Inspection and Test: API 598, DIN 3202
Products Range
Size: 1/2 Inch - 3 Inch (DN15-DN80)
Rating: ANSI Class 150 - 4500 LB
Body Materials: ASTM A105, ASTM A350 LF2, ASTM A182 F9, F11, F22, F304, F304L, F316, F316L, F321, F51, Alloy Steel, etc.

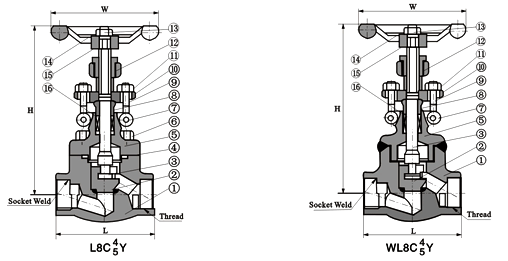

| No | Name | CS to ASTM | AS to ASTM | SS to ASTM | |
| A105 | F22 | F304(L) | F316(L) | ||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Gasket | 316+graphite | 316+PTFE | ||
| 5 | Bonnet | A105 | A276 F304 | A276 F304(L) | A276 F316(L) |
| 6 | Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 7 | Pin | A276 420 | A276 304 | ||
| 8 | Packing sleeve |
A276 410 | A182 F304(L) | A182 F316(L) | |
| 9 | Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 10 | Packinggland | A216 WCB | A351 CF8 | ||
| 11 | Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 12 | Stem nut | A276 410 | |||
| 13 | nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 14 | nameplate | SS | |||
| 15 | handwheel | A197 | |||
| 16 | Packing | Graphite | PTFE | ||
