How to Ensure Proper Operation of Pneumatic Ball Valves
On this page

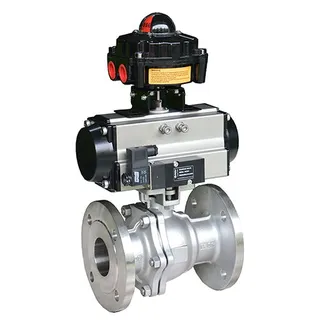

Pneumatic hard-seal ball valves are widely used in various industrial processes, including oil, chemical, metallurgy, power, and water treatment, due to their excellent sealing performance and durability. However, these ball valves may occasionally fail to operate correctly. To ensure their proper functioning, it's crucial to troubleshoot any issues promptly. This article provides a detailed analysis of common failure modes in pneumatic hard-seal ball valves and offers methods for resolving them.
Before ensuring the proper operation of a pneumatic hard-seal ball valve, it's essential to check the electrical connections. By confirming the wiring status and ensuring the circuit is clear, you can effectively rule out electrical faults that may cause the valve to malfunction.
Begin by examining the electrical wiring of the valve. Disconnect the wiring and use a multimeter to measure continuity. If you find an open circuit, it may indicate a burnt coil. Moisture can cause magnetic leakage, leading to excessive current that damages the coil. Therefore, preventing rainwater from entering the valve body is crucial, especially in outdoor or humid environments.
Additionally, factors such as overly stiff springs, excessive lateral force, insufficient coil turns, and inadequate suction can lead to coil damage. In emergencies, the valve can be operated manually to restore normal functioning. Regularly checking and maintaining electrical connections is recommended to ensure all components are working properly.
The gap between the valve core and slide valve sleeve is a key factor affecting the normal operation of pneumatic hard-seal ball valves. Thus, regular inspection and maintenance are essential.
In pneumatic metal hard-seal ball valves, the clearance between the sliding valve sleeve and valve core is typically minimal, and they are generally assembled as a single unit. Mechanical impurities or insufficient lubrication can cause the valve to jam. In such cases, you can reset the valve by inserting a wire through a small hole.
Regularly remove the valve for cleaning to ensure proper lubrication of the valve core and sleeve, preventing jamming issues. It's advisable to use specialized lubricants to minimize wear and extend the valve's lifespan. The lubrication system should also be checked regularly to ensure the quality and quantity of the lubricant.
Air leakage is one of the main causes of failure in pneumatic hard-seal ball valves, making it difficult to open and close the valve, which in turn affects the normal operation of the system.
Leakage can lead to insufficient pressure inside the valve, making it difficult for the hard-seal ball valve to open and close. This issue may be caused by damaged seals or worn sliding valves, leading to pressure loss in multiple chambers. When such failures occur, it's important to schedule repairs at appropriate times and perform maintenance when the valve is powered off.
During repairs, ensure that the system's status is stable and avoid working on the valve while it is in the switching gap to prevent more severe failures. Use gas leak detection instruments to identify leak points and replace damaged seals or valve bodies promptly.
Verifying the air source pressure is another crucial step to ensure the normal operation of pneumatic hard-seal ball valves.
Check whether the supply pressure is sufficient. Insufficient air source pressure or blocked pipelines can cause delays or failures in valve operation. Ensure that the air source piping is clear and regularly check the solenoid valves for proper operation, as malfunctions in the solenoid valves can also impede the functioning of the pneumatic ball valve.
If low air source pressure is detected, increase the pressure or replace the air filter regulator as needed. Make sure the air source pressure is within the operational range of the valve for smooth operation.
Checking the pneumatic lines and manual operation is crucial to ensuring the proper functioning of pneumatic hard-seal ball valves.
Ensure that the connections in the pneumatic line are secure and leak-free, as these factors can affect the normal operation of the pneumatic ball valve. Regularly inspect the integrity of the pneumatic lines and the tightness of connections to ensure there are no leaks. Using appropriate sealing materials and connectors can reduce the likelihood of leaks.
An incorrectly positioned manual operating lever can also prevent the valve from switching to pneumatic control mode. Ensure that the manual operating lever is correctly positioned to allow smooth operation. Adjust the manual operating lever according to the specific design and usage instructions of the valve.
In addition to the previously mentioned checks on electrical connections, valve core clearance, air leakage, air source pressure, pneumatic lines, and manual operation, other potential issues should also be considered. Here are some common faults and their solutions.
Check the inlet and outlet pressure of the air filter regulator to ensure it meets specified values. If not, adjust the air source pressure or replace the filter regulator. The air filter should be cleaned or replaced regularly to maintain filtration effectiveness and ensure clean air supply.
Inspect the solenoid valve for blockages and confirm that the switching actions are normal. If necessary, clear any obstructions or replace the solenoid valve. The operational status of the solenoid valve directly affects the opening and closing actions of the pneumatic ball valve, making its proper functioning crucial.
Verify that the air source pressure entering the actuator meets specified values, and check for blockages in the speed controller. Ensure the speed controller can adjust airflow properly to avoid sluggish valve operation due to improper airflow regulation.
Inspect the friction force of the valve sealing components for excessive resistance or leakage. Ensure that there are no sticking issues between the valve core and the seat. Regularly check and replace seals to maintain sealing performance.
If the medium inside the valve chamber is thick or contains impurities, clear any foreign objects to ensure smooth valve operation. Additionally, check for rust on the operating components; if rust is found, remove it and lubricate to restore normal functionality.
If the valve is stuck, it may not open or close properly. Check if external forces are affecting the valve; if so, eliminate these factors promptly. Ensure that the valve has adequate operating space and that external conditions do not interfere with its functioning.
Regular maintenance and inspections are key to ensuring the proper operation of pneumatic hard-seal ball valves. By following the troubleshooting methods outlined above, you can effectively address issues related to valve malfunction, ensuring the stability and reliability of your system. Developing good maintenance habits not only extends the lifespan of the valve but also enhances the overall efficiency of the system. It's advisable to create a detailed maintenance schedule and document each maintenance activity to facilitate future troubleshooting and resolution of issues.
