High Performance of Through Conduit Expanding Gate Valve
On this page

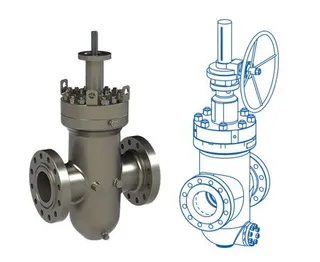

The Through Conduit Expanding Gate Valve represents the cutting edge of valve technology, distinguished by its unique design and superior performance. This valve excels in demanding industrial applications, offering enhanced wear resistance, sealing efficiency, and operational convenience and safety. It is particularly suited for fields with high performance requirements, such as geothermal energy extraction, oil and gas transportation, and petrochemical and chemical processing. This article provides a detailed exploration of the design features, material selection, structural functions, and real-world performance of the Through Conduit Expanding Gate Valve.
Design and Materials
The design and material choices of the Through Conduit Expanding Gate Valve are central to its exceptional performance. The valve features an innovative K-shaped double gate design and high-wear-resistant materials, aimed at providing outstanding sealing and long-term reliability. Below are the key highlights of its design and material advantages.
1. K-Shaped Double Gate Design
The Through Conduit Expanding Gate Valve employs an innovative K-shaped double gate design. The core of this design lies in the two angled gates, which converge along their sloped surfaces when the valve is opened, reducing friction and lowering the driving torque for smoother operation. When closed, the gates spread apart along the angled surfaces to create a bidirectional forced seal, ensuring persistent and reliable sealing. This design not only enhances sealing performance but also reduces wear on the valve, extending its service life.
2. High-Performance Materials
The valve seat and gates are made from high-performance metal materials, known for their exceptional hardness and wear resistance. These materials can withstand harsh operating conditions such as high impact, severe abrasion, and elevated temperatures. Additionally, the sealing elements of the valve utilize wear-resistant and corrosion-resistant materials, including O-rings and PTFE packing. These materials perform excellently over long periods, effectively preventing leakage and enhancing the valve's durability and safety.
Structure and Function
The structural design and functional characteristics of the Through Conduit Expanding Gate Valve are closely intertwined, contributing to its superior performance and reliability. Here, we explore the key structural components and their functional implementations.
1. Sealing Structure
The sealing structure of the Through Conduit Expanding Gate Valve includes O-ring seals and a floating seat design. The O-ring seals provide bidirectional sealing, ensuring efficient isolation performance. The floating seat structure allows the valve to adapt to pressure changes, maintaining a stable sealing state. The Double Block and Bleed (DBB) feature enables pressure testing of the inlet, providing dual sealing protection for both inlet and outlet, thereby enhancing the valve's safety and reliability.
2. Drive and Operation
The valve's actuation system uses a gear mechanism to drive the valve stem, which moves up and down to operate the main gate. The secondary gate moves in conjunction with the main gate through linkage, achieving the combined gate function. During opening or closing, the sealing surfaces of the combined gates experience compression and expansion due to the angle differences between the main and secondary gates. This design not only enhances sealing effectiveness but also protects the sealing surfaces. The overall drive system is designed to be straightforward, making operation easy and suitable for various complex conditions.
3. Packing Structure
The valve's packing chamber features a self-sealing design that reduces maintenance needs. The high-quality packing structure includes PTFE packing and O-ring seals, creating a triple-seal structure to ensure zero leakage. This design also includes an auxiliary sealing injection system that automatically relieves pressure under high-pressure conditions, improving safety and addressing common leakage issues at the packing area in traditional valves.
Performance Characteristics
The performance characteristics of the Through Conduit Expanding Gate Valve make it exceptionally well-suited for high-demand industrial applications. The main performance advantages are as follows.1. Wear and Durability
The valve's high-hardness materials effectively resist wear and impact, significantly extending its service life. Even under high-temperature, high-pressure, or abrasive media conditions, the valve maintains stable performance, reducing maintenance frequency and replacement costs.
2. Ease of Operation
Thanks to advanced sealing and drive designs, the valve's operating torque is only half that of standard valves, making the operation process extremely smooth. This design is ideal for applications with frequent operation, such as gas and liquid transport pipelines for cutoff or discharge, improving operational efficiency and safety.
3. Sealing and Safety
The self-sealing packing structure ensures efficient sealing performance, avoiding common leakage problems at the packing area of traditional valves. The fully enclosed design enhances the valve's protection, making it suitable for all-weather use and capable of withstanding severe operational conditions. Additionally, the valve automatically relieves internal high pressure when closed, further enhancing safety.
