Explore Principles and Applications of Rising Stem Gate Valves
On this page
The rising stem gate valve is renowned for its reliability in on-off control applications. This type of valve operates with a vertical stem that lifts or lowers a gate, allowing precise management of fluid flow. Understanding the principles and design nuances of rising stem gate valves is essential for optimizing their performance and durability across various industrial environments. This article delves into the operational principles, applications, and key considerations associated with these valves, highlighting their integral role in fluid control systems.

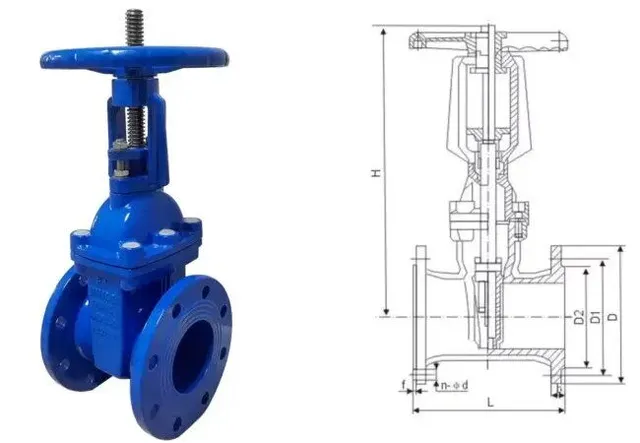

Operation Principle and Design of Rising Stem Gate Valves
The rising stem gate valve is a classic valve design widely used for on-off control in industrial pipeline systems. Its operation principle is simple and reliable: the gate is moved vertically by the stem to achieve full open or close of the pipeline. In comparison to other valve types, gate valves are suitable for on-off applications but not for situations requiring flow regulation. During operation, rising stem gate valves achieve sealing in two main ways:
1. Self-sealing principle: When the gate valve closes, the pressure of the medium pushes the gate against the valve seat, ensuring sealing of the valve. This design is suitable for most gate valves, where sealing is achieved by the pressure of the working medium, known as self-sealing.
2. External force sealing: In certain special conditions, the gate may need to be forcibly pressed against the valve seat by external force to ensure effective mechanical sealing. This method is common in industrial applications with high sealing requirements.
Gate valves are typically designed with a rising stem structure, where the stem's rotation is translated into linear motion through a nut on the top and guide grooves on the valve body, generating operational thrust. This design ensures stability and reliability during valve opening and closing operations.
Applications and Operational Recommendations for Rising Stem Gate Valves
Based on different process requirements and operating environments, rising stem gate valves are commonly used in the following scenarios:
1. On-off control applications: Suitable for situations requiring rapid on-off operations without flow regulation, such as emergency shut-off of fluid flow or regular maintenance.
2. Horizontal pipeline systems: Gate valves are often installed on horizontal pipelines with the stem moving vertically upwards, facilitating easy operation and maintenance, especially in places requiring frequent on-off switching.
3. High temperature and special media applications: For pipelines operating at high temperatures (exceeding 260°C) or containing corrosive media, flexible or split wedge gate designs are recommended to maintain sealing performance amidst thermal expansion and contraction.
4. High-speed fluid or thermal cycling applications: In such applications, it is crucial to securely lock the threaded valve seat rings onto the valve body to prevent valve loosening or leakage due to fluid pressure or temperature changes.
5. Operational considerations: After closing a rising stem gate valve, gently rotate the stem (usually 1/8 to 1/4 turn) to relieve stem load, which helps maintain long-term performance and longevity of the valve.
6. Special environment adaptability: For locations like pump stations where valves are prone to clogging due to debris in water, consider using specially designed dual-use gate valves to enhance reliability and operational efficiency.
Selection and installation of rising stem gate valves should be carefully considered based on specific process needs, media characteristics, and operational environments to ensure stable and reliable valve operation, safeguarding pipeline system safety and efficiency. Correct selection and maintenance can effectively extend the valve's service life, reduce operating costs, and improve overall system efficiency in practical applications.
